Switch-Steering Wheel-Right (D2320)

Harness-Family: StrgWheelJumper

Color: GRAY

Gender: FEMALE

Part Number: 638207-6

Part Description: INSULATOR

Connector No: D2320

Option: Standard

Repair Kit Part Number: 05135638AA

Cavity Count: 10

Fig 1: Switch-Steering Wheel-Right Connector End View

Courtesy of CHRYSLER

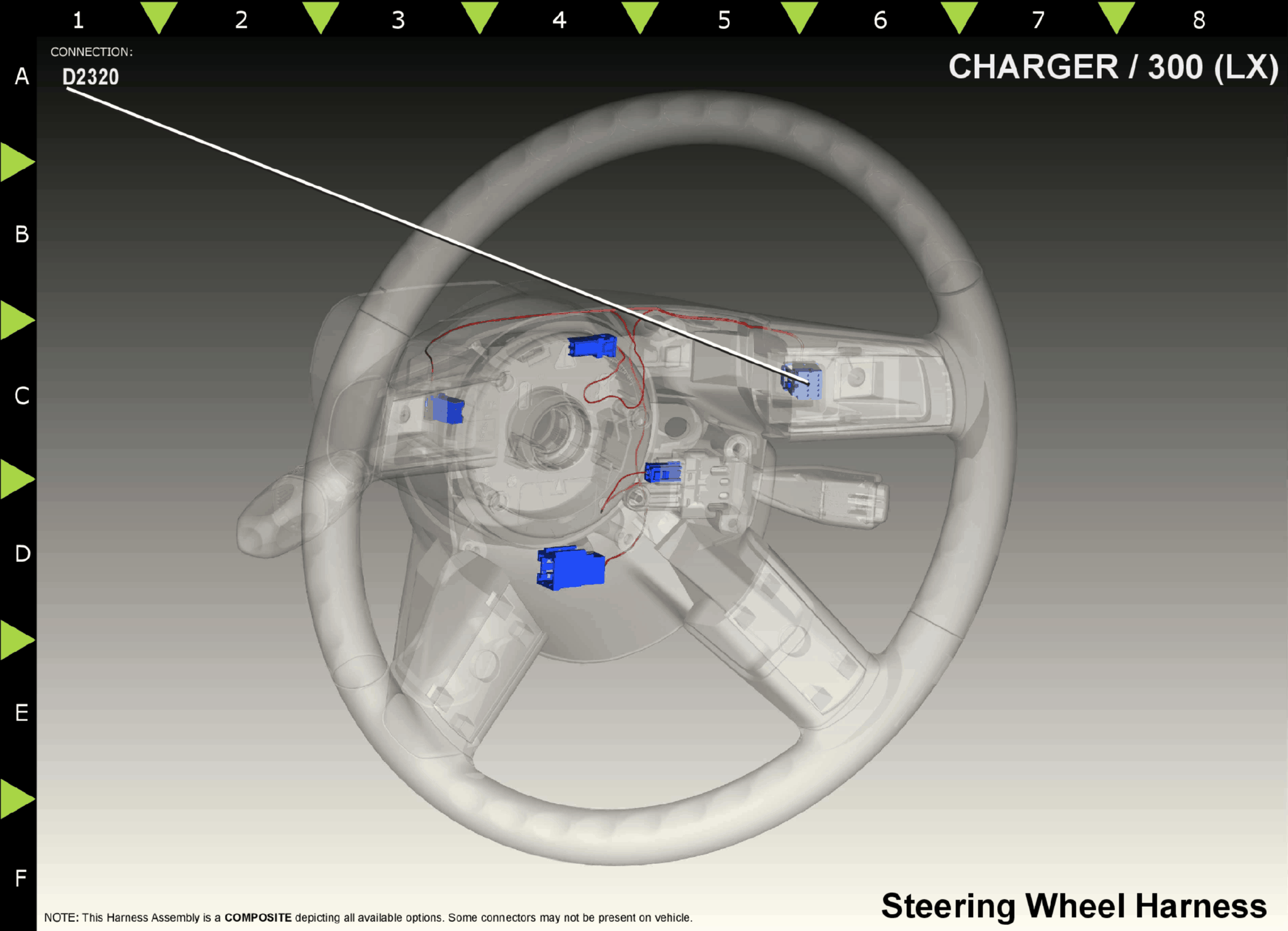

Fig 2: Switch-Steering Wheel-Right Component Location

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D503	WT	20	LIN LIGHTING	N/A
2	X903	GY	20	HORN SWITCH RETURN	N/A
3	G106	VT	20	EVIC MUX SIGNAL	N/A
4	G206	VT	20	EVIC MUX SIGNAL 2	N/A
5	D500	WT	20	LIN BUS	N/A
6	D502	WT	20	LIN SLAVE FEED	N/A
7	X3	DG	20	HORN SWITCH SENSE	N/A
8	D501	WT	20	LIN BUS RETURN	N/A
9	G907	VT	20	EVIC MUX RETURN	N/A
