Switch-Horn (D2246)

Harness-Family: StrgWheelJumper

Color: BLACK

Gender: FEMALE

Part Number: 1507

Part Description: INSULATOR

Connector No: D2246

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Switch-Horn Connector End View

GCWD1016869

Courtesy of CHRYSLER

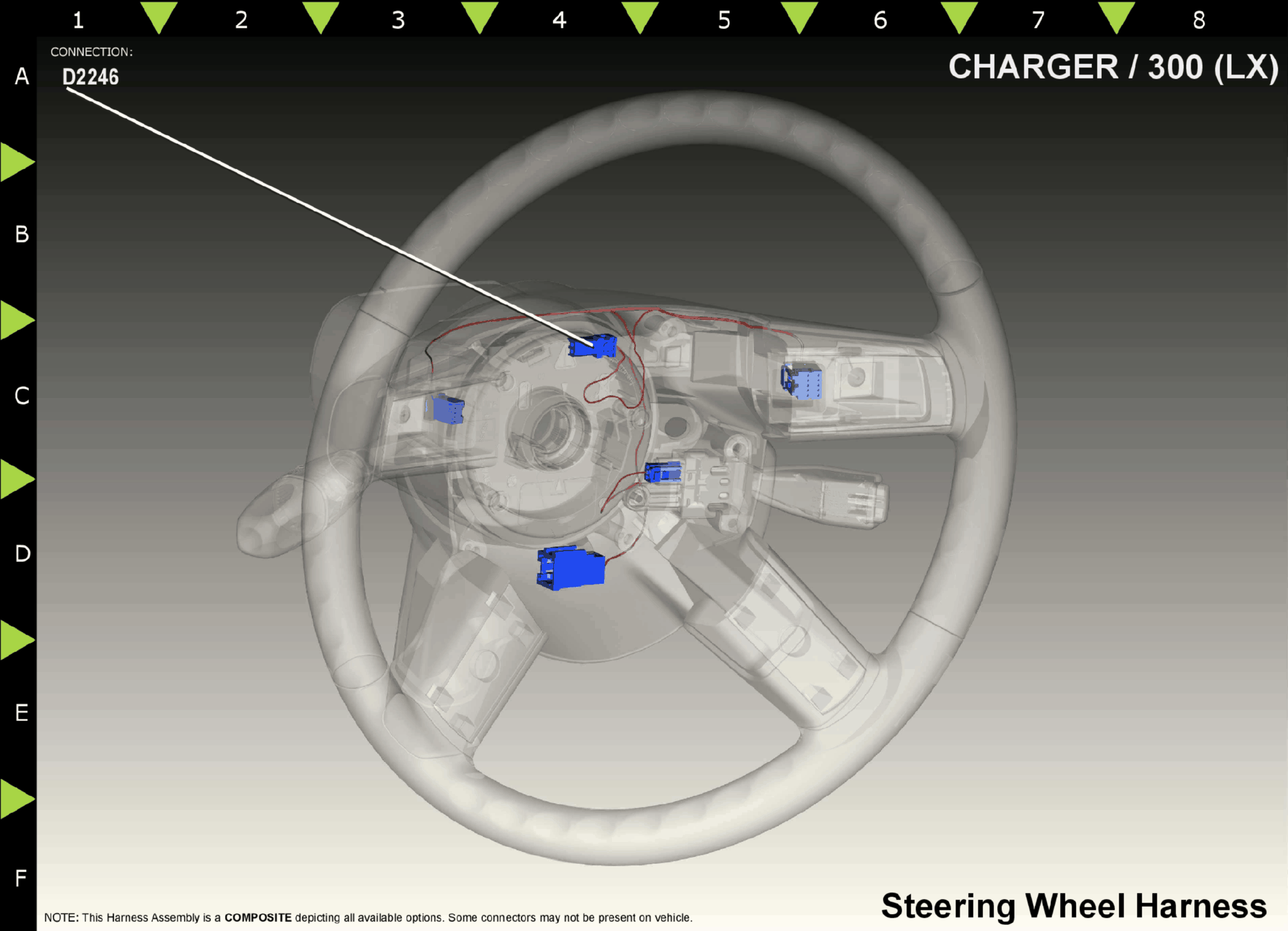

Fig 2: Switch-Horn Component Location

GCWD1023151

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D500	WT	20	LIN BUS	PREMIUM
1	X3	DG	20	HORN SWITCH SENSE	BASE
2	D501	WT	20	LIN BUS RETURN	PREMIUM
2	X903	GY	20	HORN SWITCH RETURN	BASE
