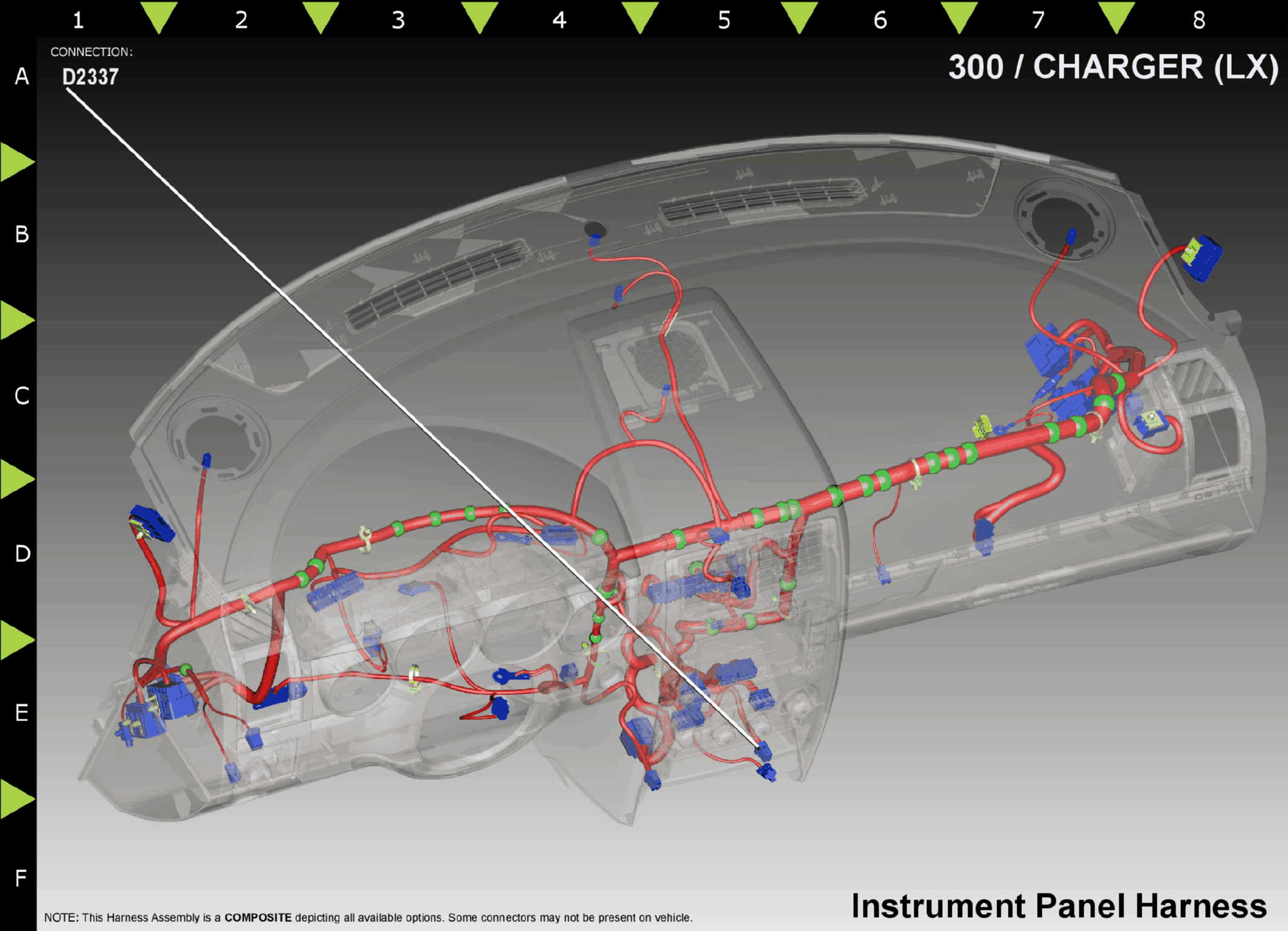

Switch-Heated Seat-Right (D2337)
Harness-Family: IP
Color: BLACK
Gender: FEMALE
Part Number: 638392-1
Part Description: INSULATOR W/O CPA
Connector No: D2337
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: 8
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | F23 | RD | 22 | FUSED IGNITION SWITCH OUTPUT (RUN) | N/A |
| 2 | Z909 | BK | 20 | GROUND | N/A |
| 3 | P366 | LG | 22 | RIGHT HEATED SEAT SWITCH SENSE | N/A |
| 4 | P84 | TN | 22 | RIGHT HEATED SEAT HIGH INDICATOR DRIVER | N/A |
| 6 | P82 | TN | 22 | RIGHT HEATED SEAT LOW INDICATOR DRIVER | N/A |
| 7 | E12 | OR | 22 | PANEL LAMPS DRIVER | N/A |
