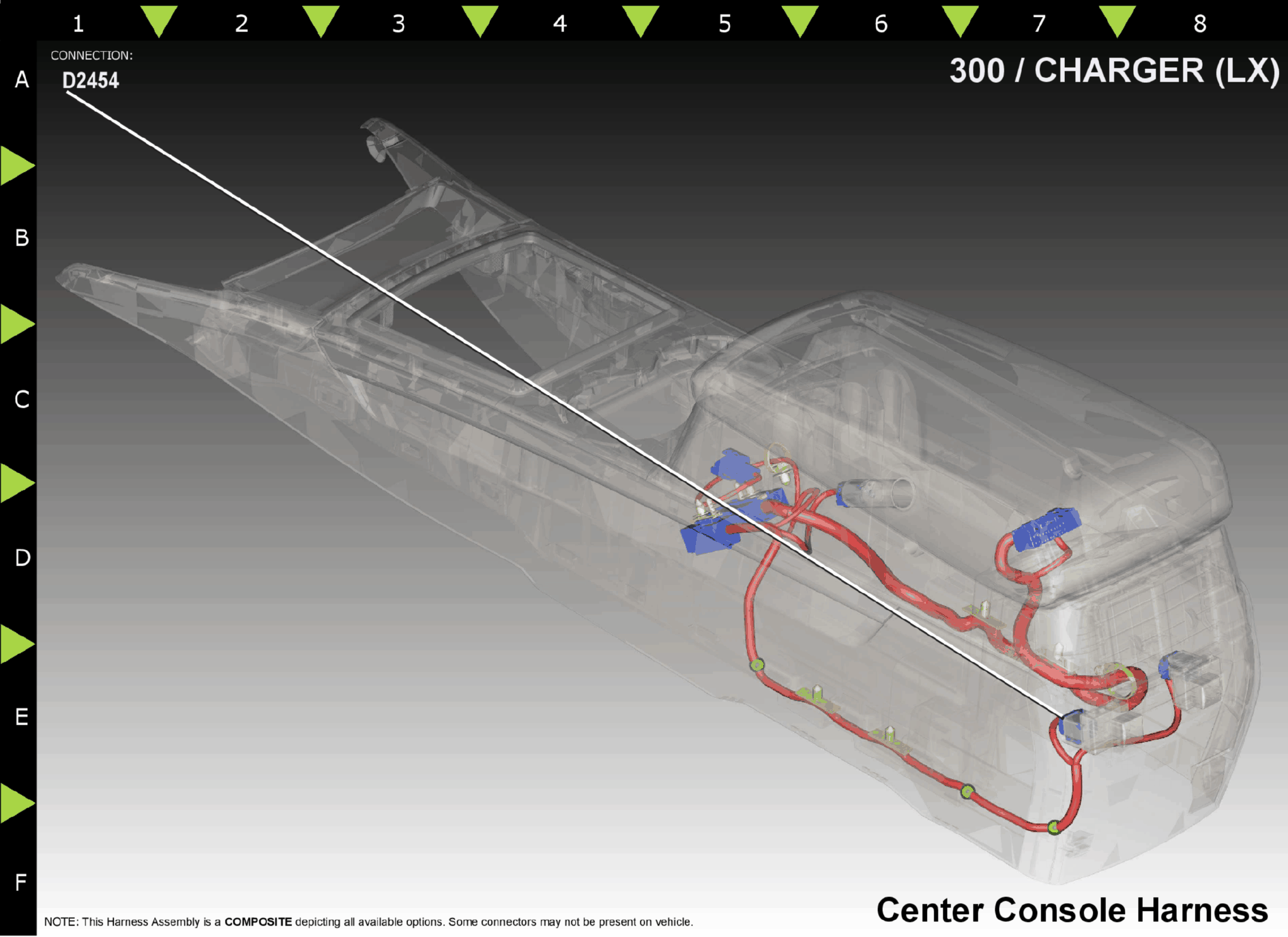

Switch-Heated Seat-Left Rear (D2454)
Harness-Family: Console
Color: LIGHT GRAY
Gender: FEMALE
Part Number: 7283-6454-40
Part Description: Not Available
Connector No: D2454
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: 6
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | Z911 | BK | 20 | GROUND | N/A |
| 2 | E12 | OR | 20 | PANEL LAMPS DRIVER | N/A |
| 3 | P177 | LG | 20 | LEFT REAR SEAT HEATER CONTROL | N/A |
| 4 | F98 | PK | 20 | FUSED IGNITION SWITCH OUTPUT (RUN-ACC) | N/A |
| 6 | F98 | PK | 20 | FUSED IGNITION SWITCH OUTPUT (RUN-ACC) | N/A |
