Switch-Door Handle-Exterior-Left Front (D2507)

Harness-Family: Door_Driver

Color: BLACK

Gender: FEMALE

Part Number: 7283-6079-30

Part Description: YESC 0.64 2P SEALED CONNECTOR ASSY

Connector No: D2507

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Switch-Door Handle-Exterior-Left Front Connector End View
GCWD1006563Courtesy of CHRYSLER

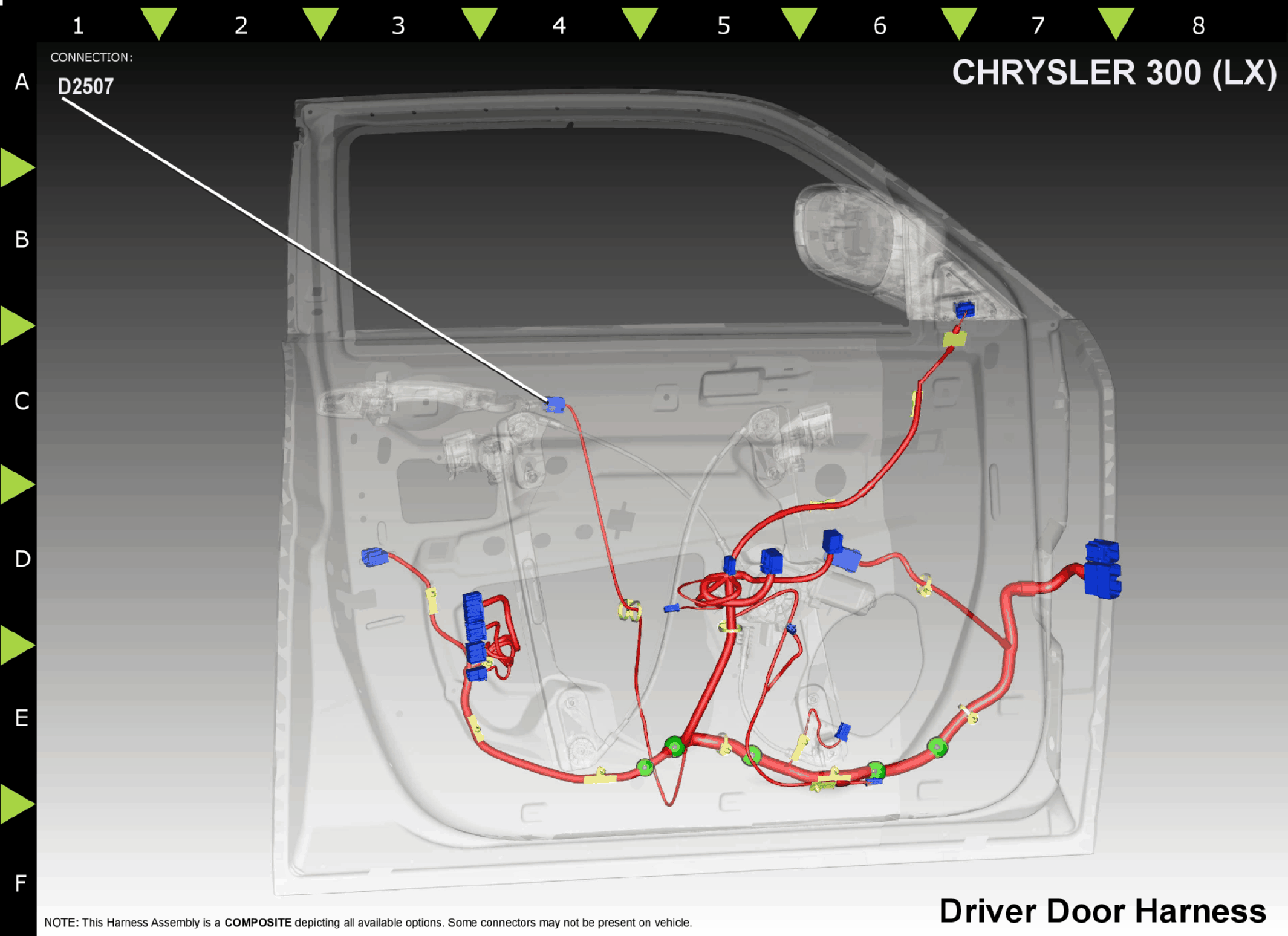

Fig 2: Switch-Door Handle-Exterior-Left Front Component Location
GCWD1022375Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 P125 LG 22 LEFT FRONT PASSIVE ENTRY HANDLE SWITCH SENSE N/A
2 P124 LG 22 LEFT FRONT PASSIVE ENTRY HANDLE SWITCH RETURN N/A
2 Z961 BK 22 GROUND N/A
