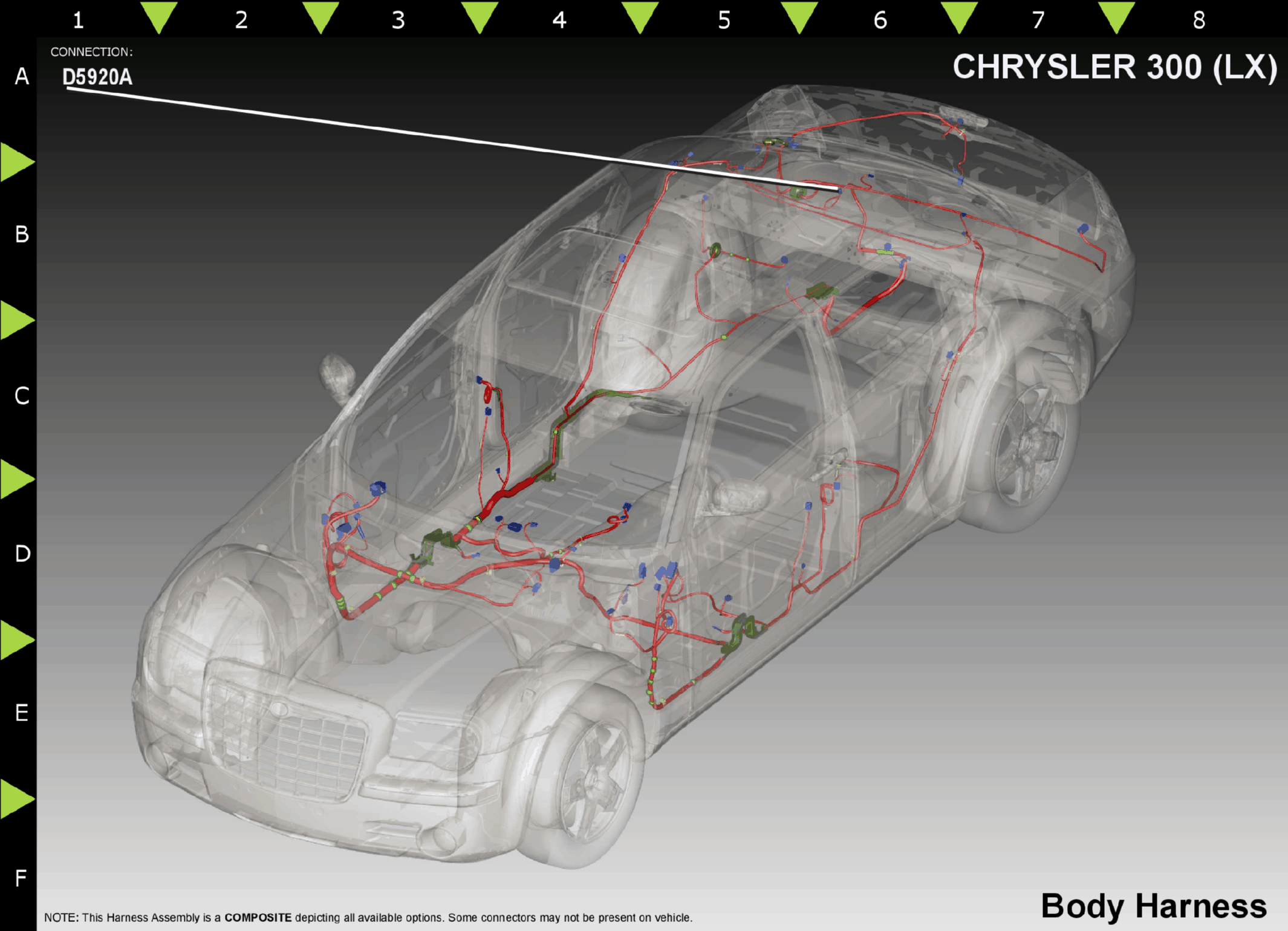

Speaker-Subwoofer (D5920A)
Harness-Family: Body
Color: NATURAL
Gender: FEMALE
Part Number: 174921-1
Part Description: 070 SERIES MULTILOCK CONNECTOR PLUG HSG
Connector No: D5920A
Option: W/O VIDEO
Repair Kit Part Number: 68040489AA
Cavity Count: 3
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | X300 | GY | 18 | AMPLIFIED SUBWOOFER 1 (+) | N/A |
| 1 | A139 | RD | 16 | FUSED B(+) | N/A |
| 2 | X300 | GY | 18 | AMPLIFIED SUBWOOFER 1 (+) | N/A |
| 3 | X390 | DG | 18 | AMPLIFIED SUBWOOFER 1 (-) | N/A |
| 4 | Z912 | BK | 16 | GROUND | N/A |
