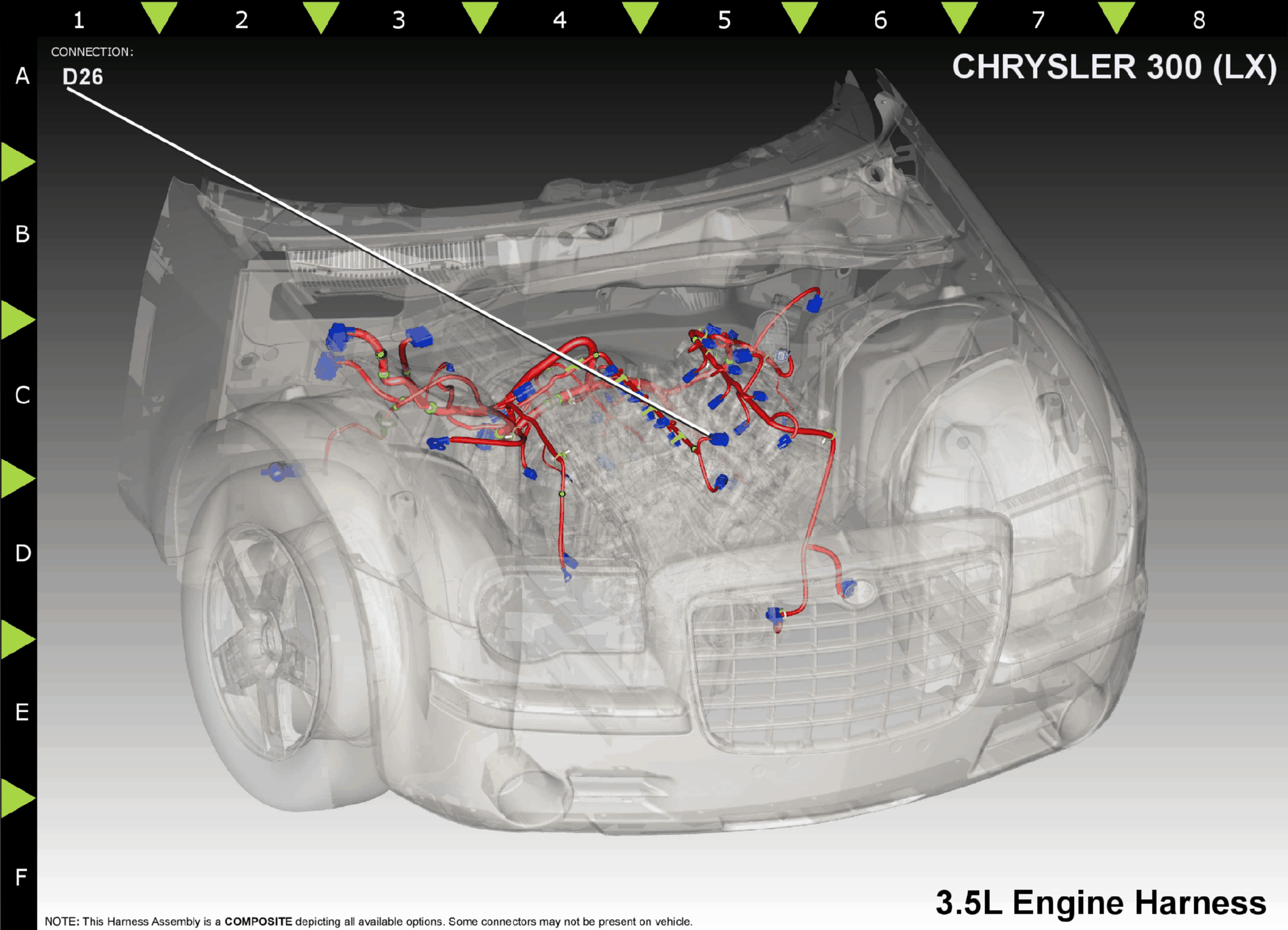

Solenoid-Short Runner Valve (D26)
Harness-Family: Engine
Color: BLACK
Gender: FEMALE
Part Number: 7283-3291-30
Part Description: Not Available
Connector No: D26
Option: Standard
Repair Kit Part Number: 68018957AA
Cavity Count:
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | K236 | DB | 20 | SRV CONTROL | N/A |
| 3 | F343 | BR | 16 | FUSED ASD RELAY OUTPUT | N/A |
| 4 | K900 | DB | 20 | SENSOR GROUND | N/A |
| 5 | K235 | DB | 20 | SRV SIGNAL | N/A |
| 6 | F856 | YL | 20 | 5 VOLT SUPPLY | N/A |
