S349 (S1490)

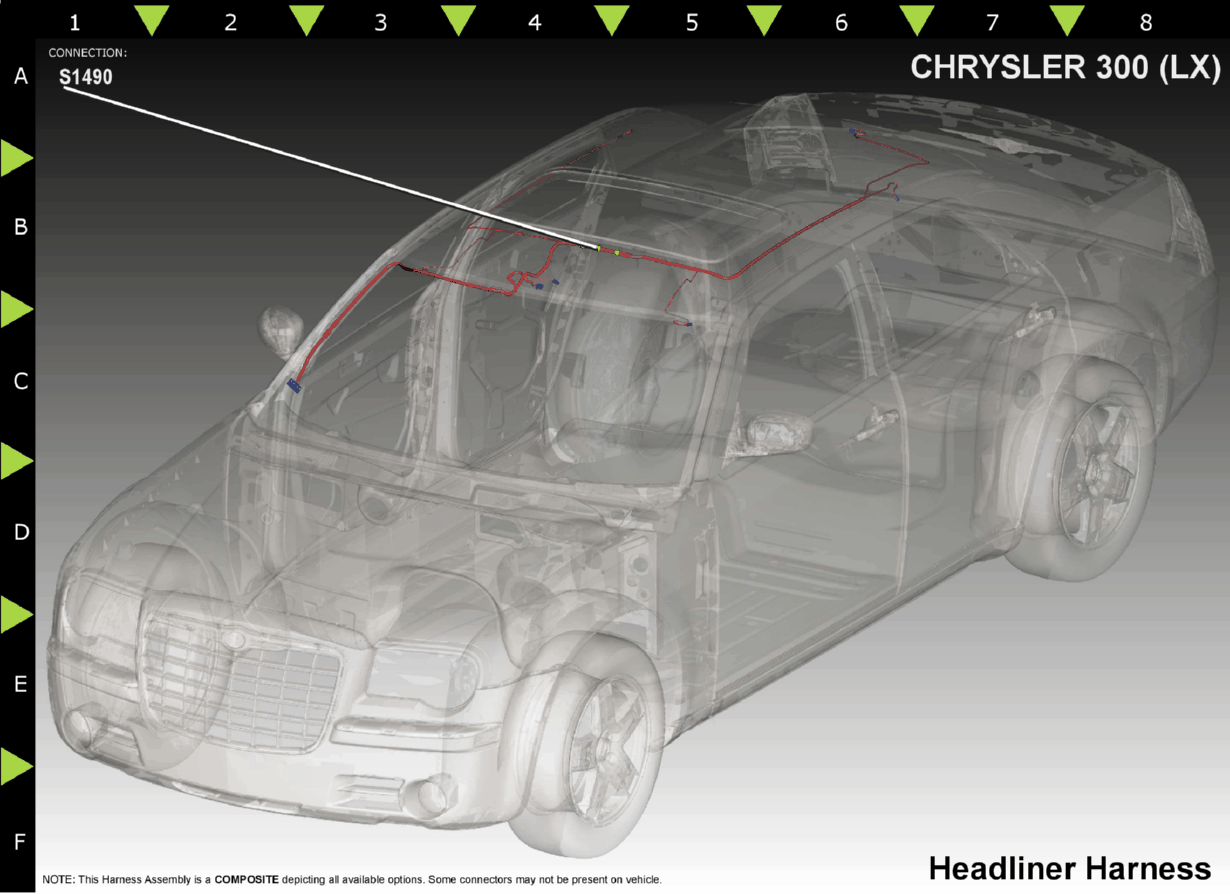

Harness-Family: Headliner
Color: NA
Gender: FEMALE
Part Number: NA
Part Description: Not Available
Connector No: S1490
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count:
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | Z909 | BK | 16 | GROUND | N/A |
| 1 | X750 | GY | ~~ | REAR PARK ASSIST SENSOR GROUND | N/A |
| 2 | Z909 | BK | 20 | GROUND | N/A |
| 2 | X750 | GY | ~~ | REAR PARK ASSIST SENSOR GROUND | N/A |
| 3 | Z909 | BK | 20 | GROUND | N/A |
| 3 | X750 | GY | ~~ | REAR PARK ASSIST SENSOR GROUND | N/A |
| 4 | Z909 | BK | 20 | GROUND | N/A |
| 4 | X750 | GY | ~~ | REAR PARK ASSIST SENSOR GROUND | N/A |
| 5 | Z909 | BK | 20 | GROUND | N/A |
| 5 | X750 | GY | ~~ | REAR PARK ASSIST SENSOR GROUND | N/A |
| 6 | Z909 | BK | 20 | GROUND | N/A |
| 7 | Z909 | BK | 20 | GROUND | N/A |
| 8 | Z909 | BK | 16 | GROUND | N/A |
| 9 | Z909 | BK | 18 | GROUND | N/A |
