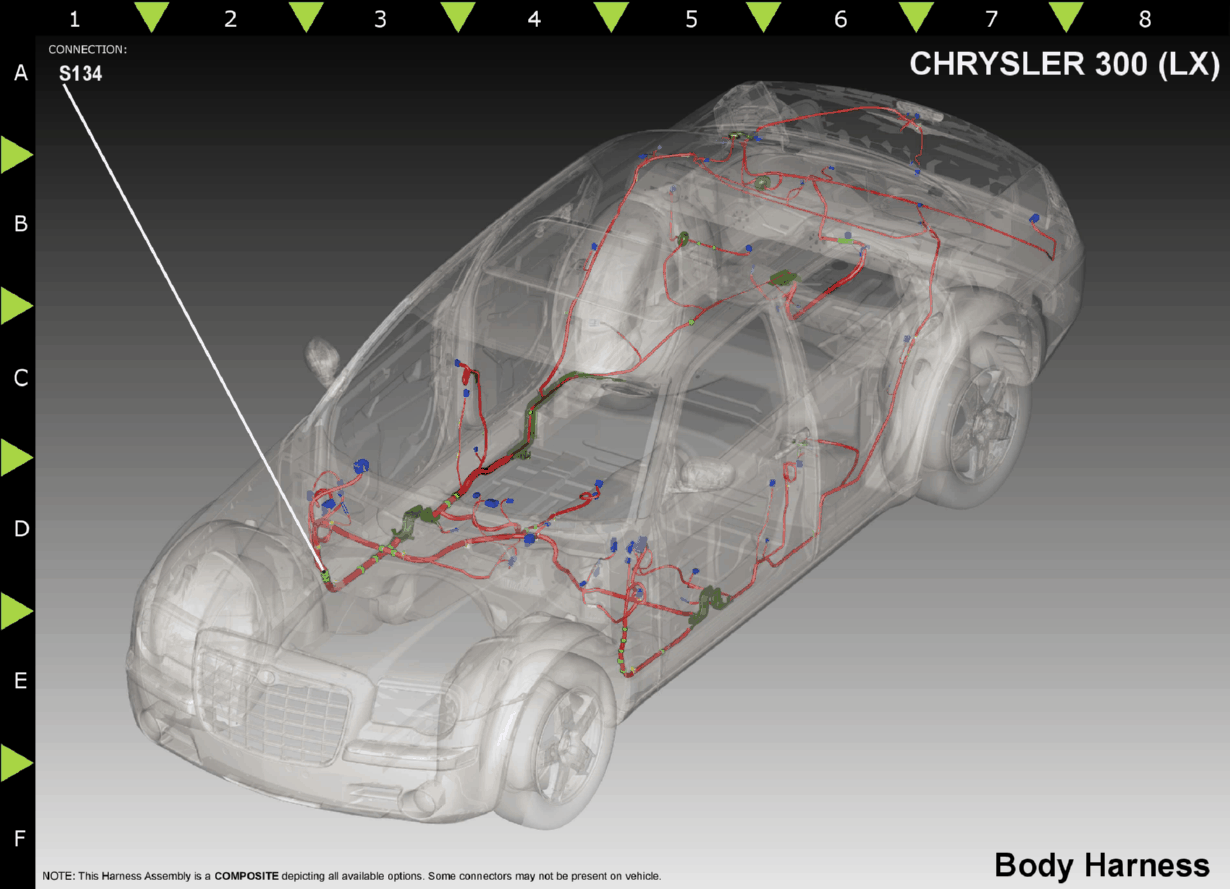

S303 (S134)
Harness-Family: Body
Color: NA
Gender: FEMALE
Part Number: NA
Part Description: Not Available
Connector No: S134
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count:
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | P303 | TN | 22 | PASSENGER DOOR UNLOCK DRIVER | N/A |
| 2 | P303 | TN | 22 | PASSENGER DOOR UNLOCK DRIVER | N/A |
| 3 | P303 | TN | 22 | PASSENGER DOOR UNLOCK DRIVER | N/A |
| 4 | P303 | TN | 22 | PASSENGER DOOR UNLOCK DRIVER | N/A |
