S300 (S123)

Harness-Family: Body

Color: NA

Gender: FEMALE

Part Number: NA

Part Description: Not Available

Connector No: S123

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: S300 Connector End View

GCWD1006457

Courtesy of CHRYSLER

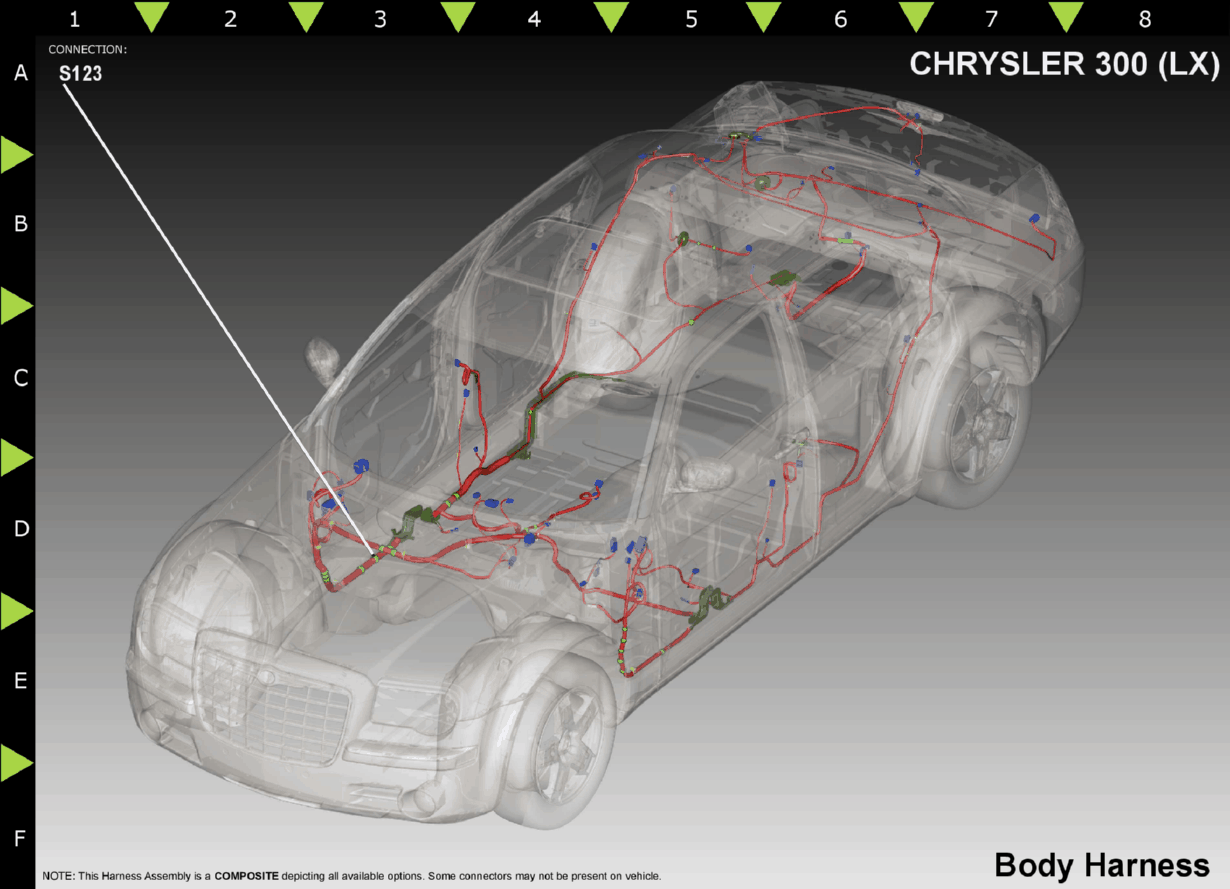

Fig 2: S300 Component Location

GCWD1017540

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F880	PK	22	FUSED ACCESSORY DELAY RELAY OUTPUT	N/A
10	F880	PK	22	FUSED ACCESSORY DELAY RELAY OUTPUT	N/A
2	F880	PK	22	FUSED ACCESSORY DELAY RELAY OUTPUT	N/A
3	F880	PK	22	FUSED ACCESSORY DELAY RELAY OUTPUT	N/A
4	F880	PK	22	FUSED ACCESSORY DELAY RELAY OUTPUT	N/A
5	F880	PK	22	FUSED ACCESSORY DELAY RELAY OUTPUT	N/A
8	F880	PK	22	FUSED ACCESSORY DELAY RELAY OUTPUT	N/A
9	F880	PK	22	FUSED ACCESSORY DELAY RELAY OUTPUT	N/A
