S204 (S1670)

Harness-Family: IP

Color: NA

Gender: FEMALE

Part Number: NA

Part Description: Not Available

Connector No: S1670

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: S204 Connector End View

GCWD1006457

Courtesy of CHRYSLER

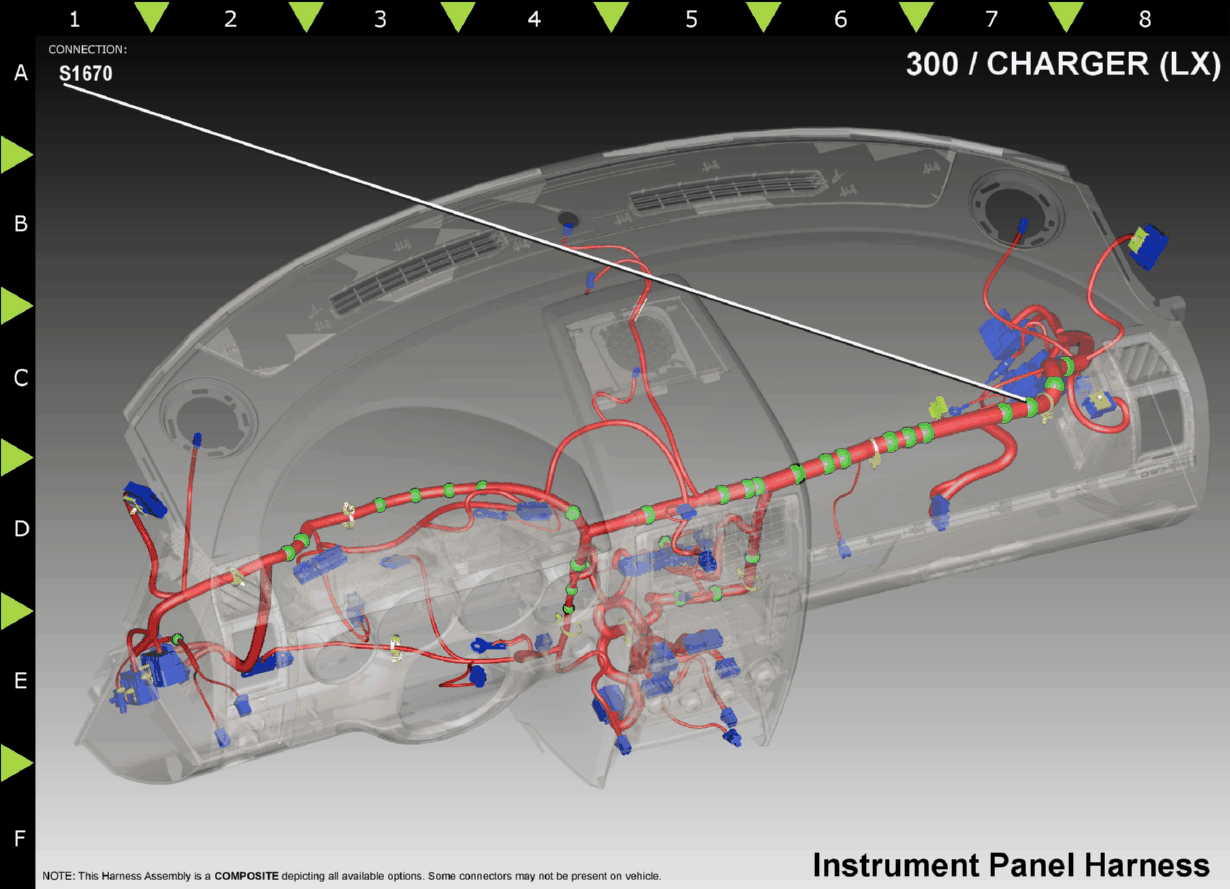

Fig 2: S204 Component Location

GCWD1019211

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D54	WT	20	CAN B (-)	N/A
2	D54	WT	20	CAN B (-)	N/A
3	D54	WT	20	CAN B (-)	N/A
4	D54	WT	22	CAN B (-)	N/A
5	D54	WT	22	CAN B (-)	N/A
6	D54	WT	22	CAN B (-)	N/A
7	D54	WT	20	CAN B (-)	N/A
8	D54	WT	20	CAN B (-)	N/A
