S107 (S920A)

Harness-Family: Engine

Color: NA

Gender: FEMALE

Part Number: NA

Part Description: Not Available

Connector No: S920A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: S107 Connector End View
GCWD1006457Courtesy of CHRYSLER

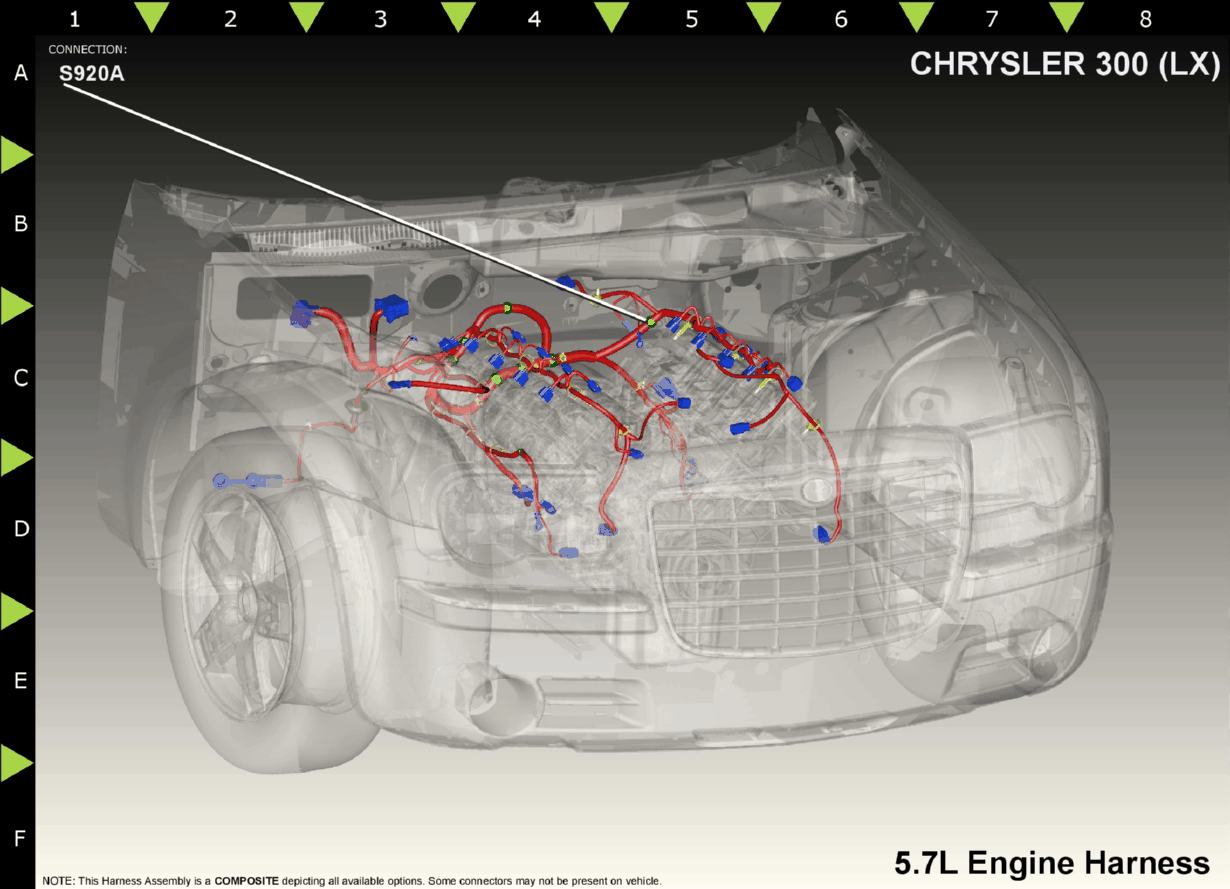

Fig 2: S107 Component Location
GCWD1017959Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 F343 BR 16 FUSED ASD RELAY OUTPUT N/A
2 F343 BR 16 FUSED ASD RELAY OUTPUT N/A
3 F343 BR 16 FUSED ASD RELAY OUTPUT N/A
4 F343 BR 16 FUSED ASD RELAY OUTPUT N/A
5 F343 BR 16 FUSED ASD RELAY OUTPUT N/A
6 F343 BR 16 FUSED ASD RELAY OUTPUT N/A
7 F343 BR 16 FUSED ASD RELAY OUTPUT N/A
8 F343 BR 16 FUSED ASD RELAY OUTPUT N/A
