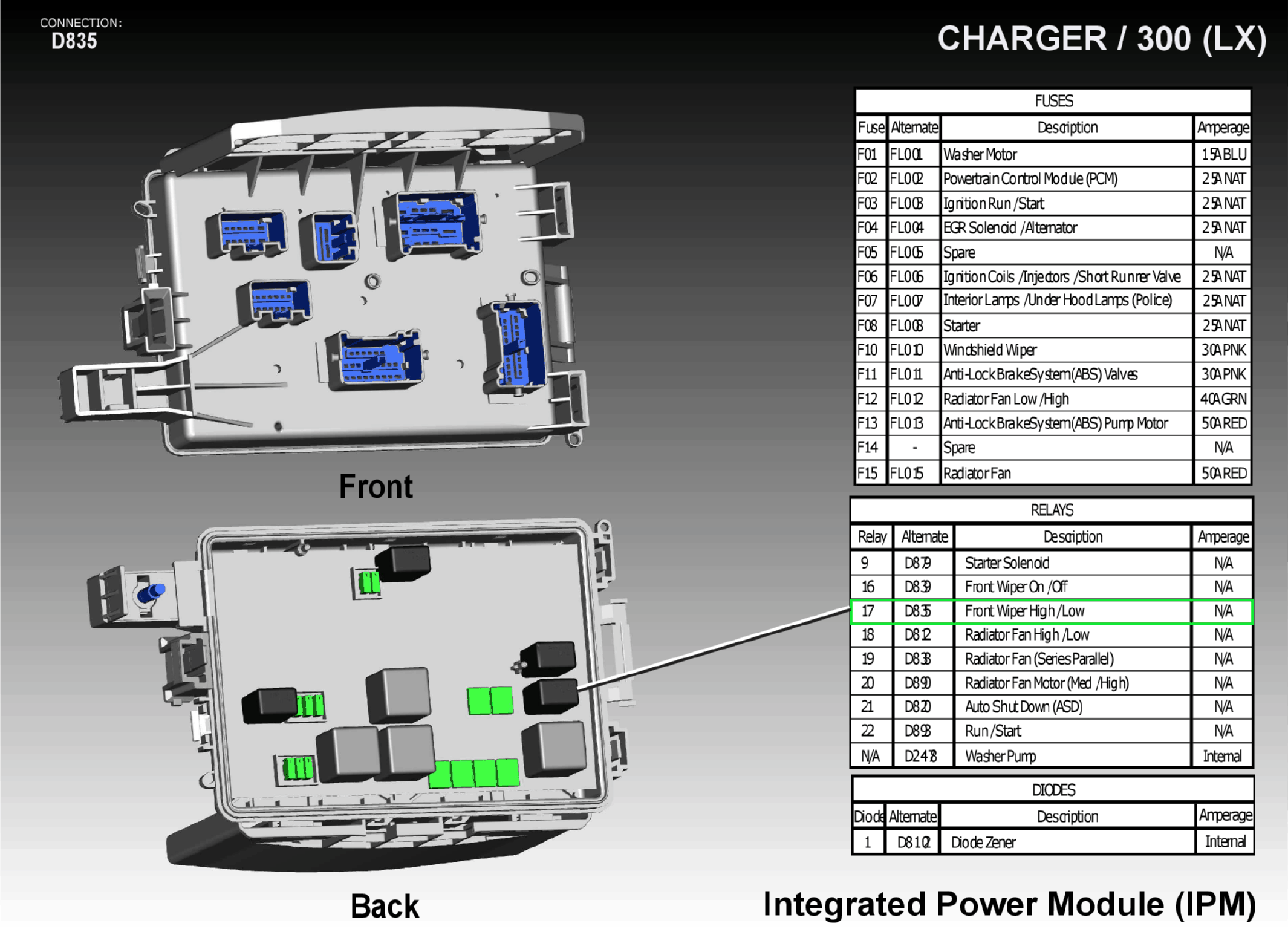

Relay-Wiper High/Low (D835)
Harness-Family: Virtual_IPM
Color: NA
Gender: MALE
Part Number: TBD
Part Description: Not Available
Connector No: D835
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 87 | W4 | BR | ~~ | WIPER HIGH SPEED CONTROL OUTPUT | N/A |
| 87A | W3 | BR | ~~ | WIPER LOW SPEED CONTROL OUTPUT | N/A |
