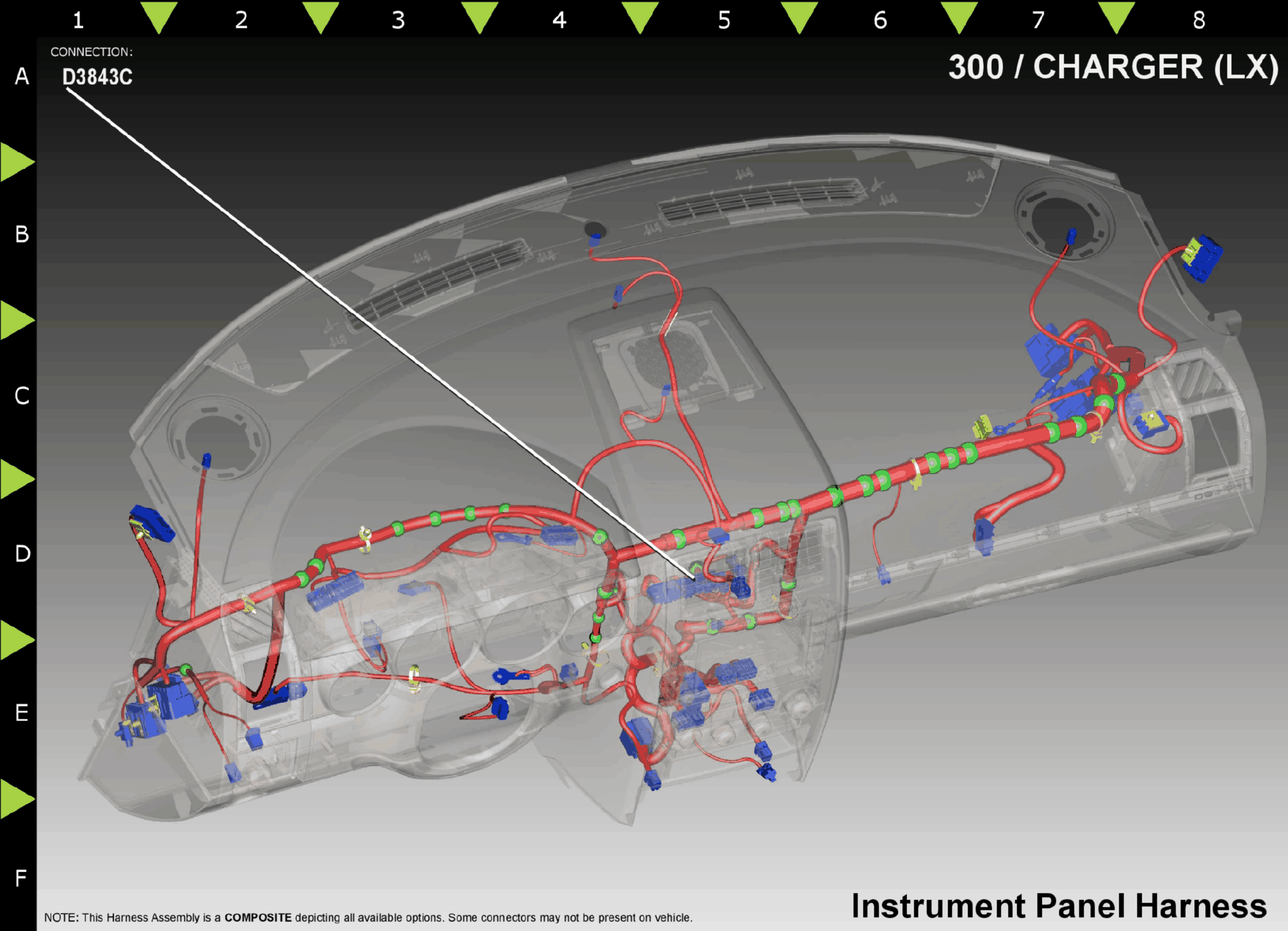

Radio C3 (D3843C)
Harness-Family: IP
Color: WHITE
Gender: FEMALE
Part Number: 1438759-1
Part Description: 22 WAY HYBRID PLUG ASSEMBLY
Connector No: D3843C
Option: Standard
Repair Kit Part Number: 68032268AA
Cavity Count: 22
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| C1 | X552 | GY | 22 | AUDIO RETURN 3 | VIDEO |
| C10 | X542 | GY | 22 | VIDEO COMMON 2 | VIDEO |
| C11 | X543 | NA | 22 | VIDEO SHIELD 2 | VIDEO |
| C12 | X546 | GY | 22 | AUDIO RETURN 2 | VIDEO |
| C13 | X551 | DG | 22 | AUDIO LEFT 3 | VIDEO |
| C14 | X550 | DG | 22 | AUDIO RIGHT 3 | VIDEO |
| C18 | X539 | DG | 22 | AUDIO LEFT 1 | VIDEO |
| C19 | X540 | GY | 22 | AUDIO RETURN 1 | VIDEO |
| C20 | X538 | DG | 22 | AUDIO RIGHT 1 | VIDEO |
| C21 | X545 | DG | 22 | AUDIO LEFT 2 | VIDEO |
| C22 | X544 | DG | 22 | AUDIO RIGHT 2 | VIDEO |
| C3 | X970 | DG | 22 | CAMERA SIGNAL | BACK-UP CAMERA |
| C4 | X971 | DG | 22 | CAMERA RETURN | BACK-UP CAMERA |
| C5 | X972 | NA | 22 | CAMERA SHIELD | BACK-UP CAMERA |
| C6 | X534 | GY | 22 | VIDEO SIGNAL 1 | VIDEO |
| C7 | X535 | GY | 22 | VIDEO COMMON 1 | VIDEO |
| C8 | X536 | NA | 22 | VIDEO SHIELD 1 | VIDEO |
| C9 | X541 | GY | 22 | VIDEO SIGNAL 2 | VIDEO |
