Port-Media (D2470)

Harness-Family: UCI_Jpr

Color: BLACK

Gender: MALE

Part Number: 6-1419167-1

Part Description: 2X8P GET MALE CONNECTOR ASSEMBLY

Connector No: D2470

Option: Standard

Repair Kit Part Number: 68068661AA

Cavity Count: 16

Fig 1: Port-Media Connector End View

Courtesy of CHRYSLER

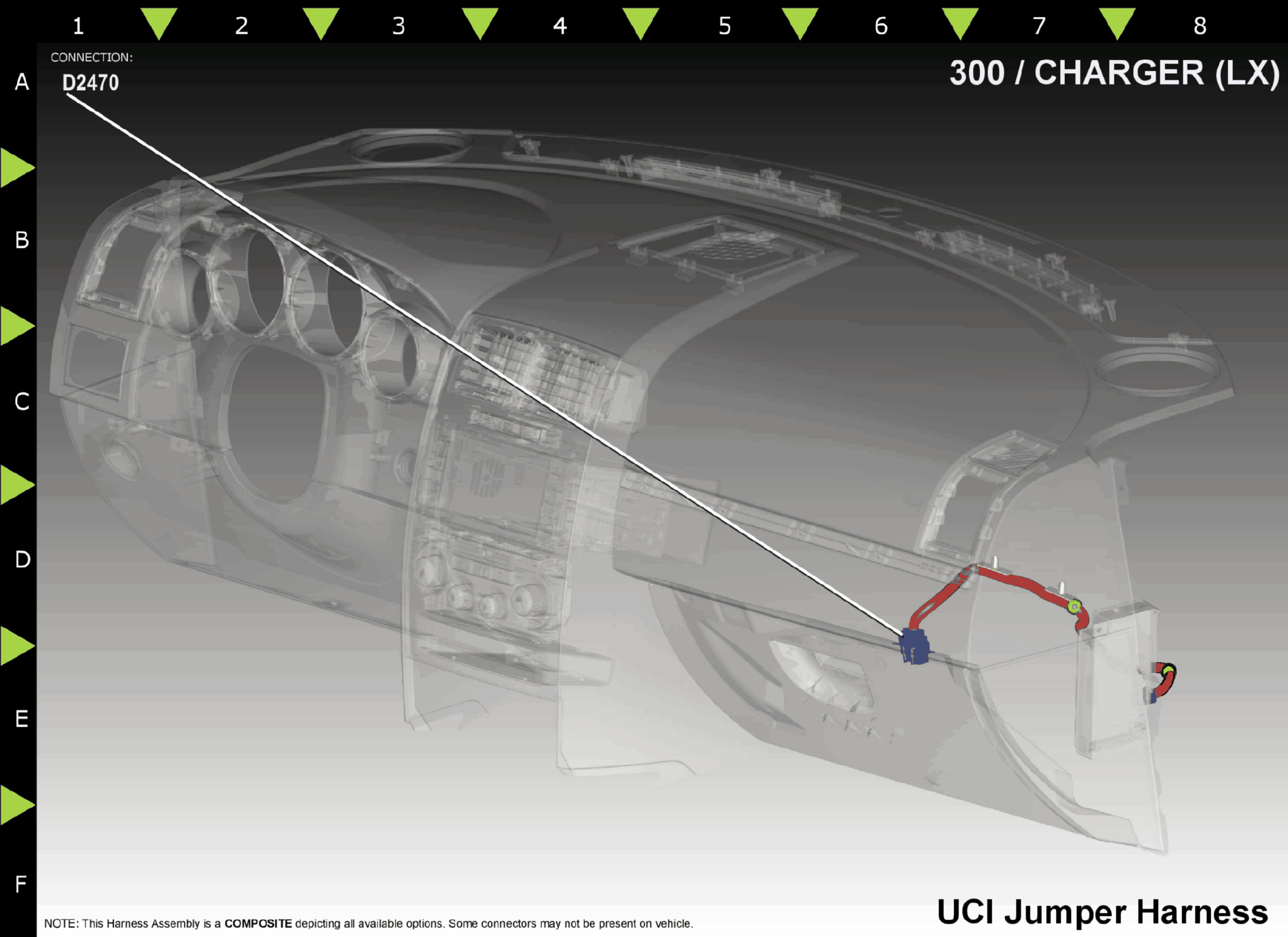

Fig 2: Port-Media Component Location

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	X441	PK	22	UCI POWER FEED 1 PASS THROUGH	N/A
10	Z433	BK	22	GROUND	N/A
11	X444	GY	22	UCI USB DATA (+)	N/A
12	X445	DB	22	UCI USB DATA (-)	N/A
15	X439	BR	22	UCI ID	N/A
16	X440	YL	22	UCI DEVICE DETECT	N/A
2	X431	DG	22	UCI EXT RECEIVE	N/A
3	X430	DB	22	UCI EXT TRANSMIT	N/A
4	X446	BR	22	UCI POWER FEED 2 PASS THROUGH	N/A
6	X434	NA	22	UCI SHIELD	N/A
7	X435	RD	22	UCI AUDIO RT INPUT	N/A
8	X436	WT	22	UCI AUDIO LT INPUT	N/A
9	X437	TN	22	UCI AUDIO REFERENCE	N/A
