Motor-Window-Left Rear (D3042)

Harness-Family: Door_Left_Rear

Color: LIGHT GRAY

Gender: FEMALE

Part Number: 04793401

Part Description: Not Available

Connector No: D3042

Option: Standard

Repair Kit Part Number: 68018941AA

Cavity Count: 2

Fig 1: Motor-Window-Left Rear Connector End View

GCWD1025393

Courtesy of CHRYSLER

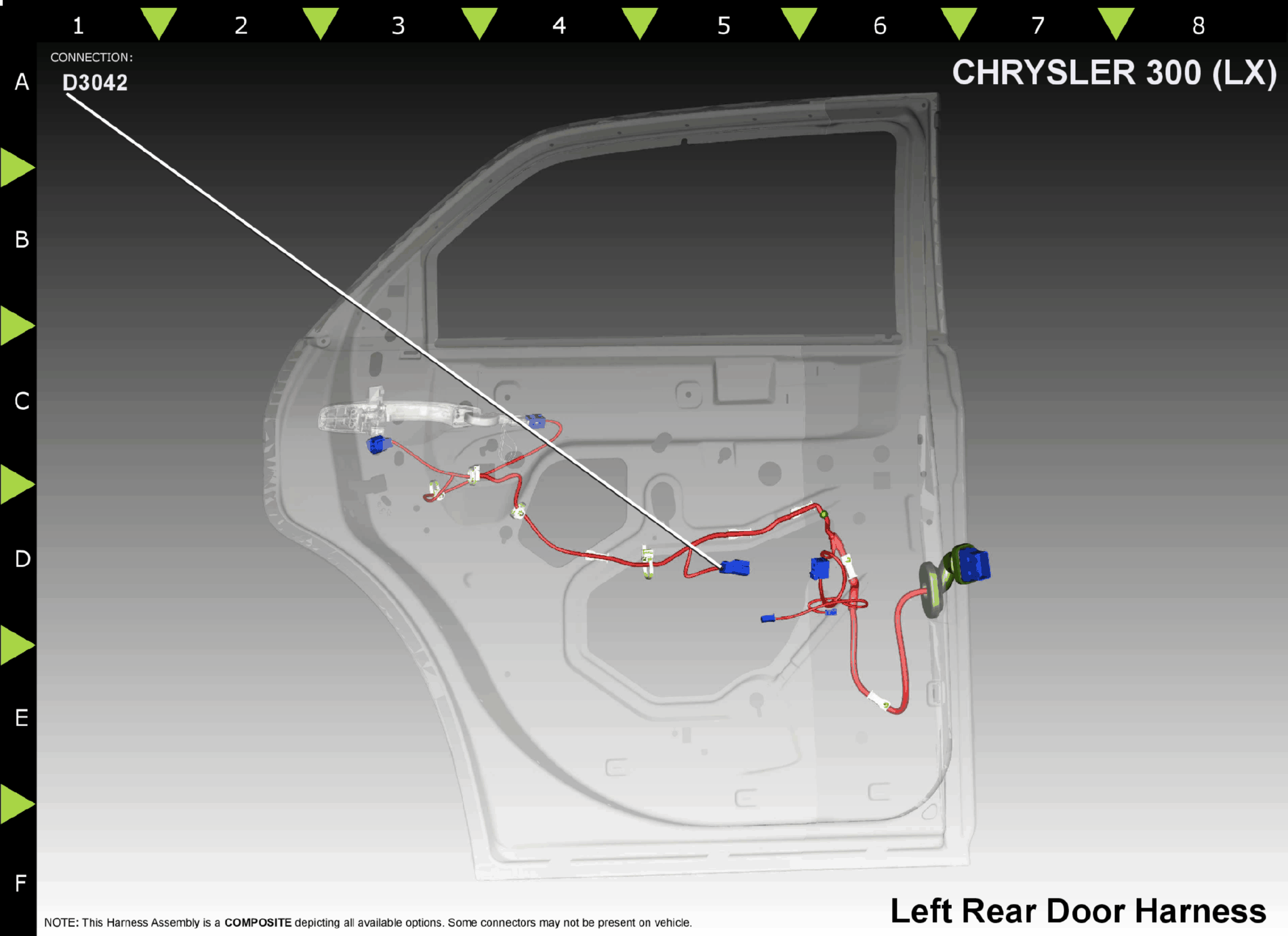

Fig 2: Motor-Window-Left Rear Component Location

GCWD1019646

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Q211	OR	16	DRIVER REAR WINDOW DRIVER (DOWN)	N/A
2	Q111	OR	16	DRIVER REAR WINDOW DRIVER (UP)	N/A
