Motor-Transfer Case C2 (D3037B)

Harness-Family: Transfer_Case

Color: BLACK

Gender: FEMALE

Part Number: 15449028

Part Description: GT 150 SEALED Female CONNECTOR ASSEMBLY

Connector No: D3037B

Option: Standard

Repair Kit Part Number: 68064995AA

Cavity Count: 2

Fig 1: Motor-Transfer Case C2 Connector End View
GCWD1016810Courtesy of CHRYSLER

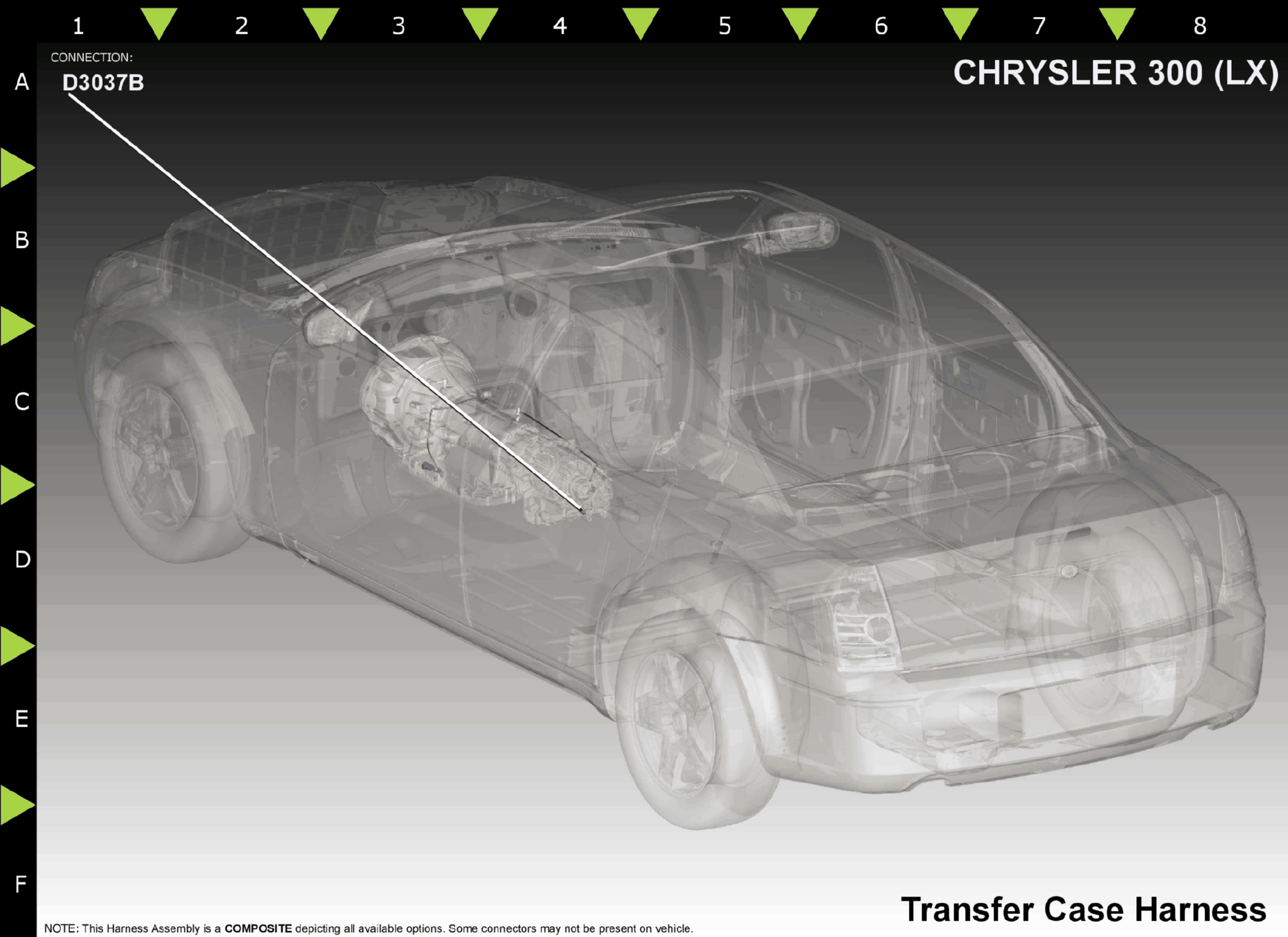

Fig 2: Motor-Transfer Case C2 Component Location
GCWD1021772Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
A K594 BR 20 DRIVETRAIN SENSOR RETURN N/A
B K504 BR 20 DRIVETRAIN 5 VOLT SUPPLY N/A
