Motor-Transfer Case C1 (D3037A)

Harness-Family: Transfer_Case

Color: BLACK

Gender: FEMALE

Part Number: 13518845

Part Description: 2.8 GT SEALED CONNECTOR ASSEMBLY

Connector No: D3037A

Option: Standard

Repair Kit Part Number: 68272952AA

Cavity Count: 2

Fig 1: Motor-Transfer Case C1 Connector End View
GCWD1016804Courtesy of CHRYSLER

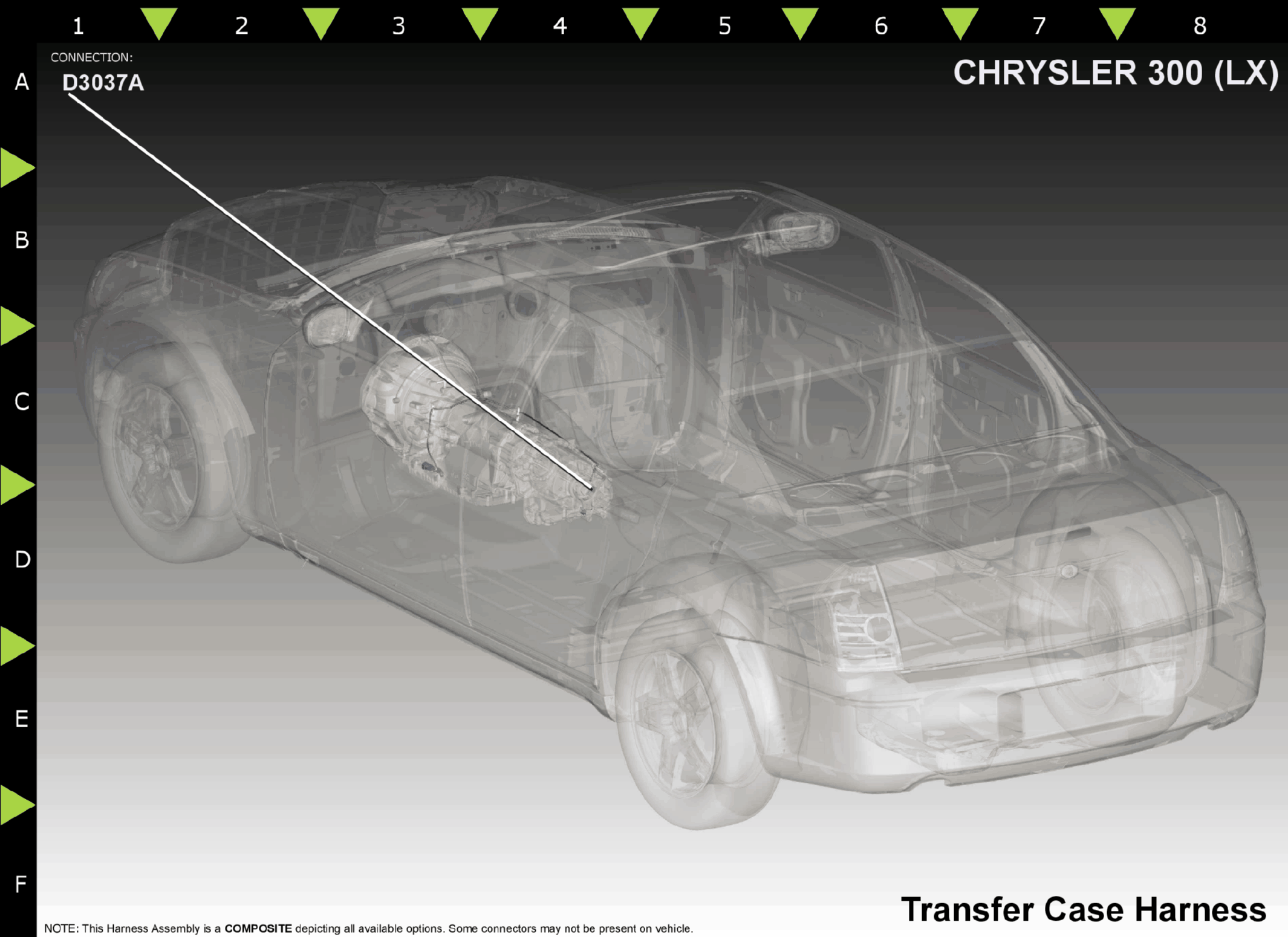

Fig 2: Motor-Transfer Case C1 Component Location
GCWD1021773Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
A T315 YL 14 SHIFT MOTOR CONTROL A N/A
B T316 YL 14 SHIFT MOTOR CONTROL B N/A
