Motor-Steering Telescope (D3050)

Harness-Family: IP

Color: NATURAL

Gender: FEMALE

Part Number: 772-717-502

Part Description: SLK 2.8 CONNECTOR

Connector No: D3050

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 4

Fig 1: Motor-Steering Telescope Connector End View

Courtesy of CHRYSLER

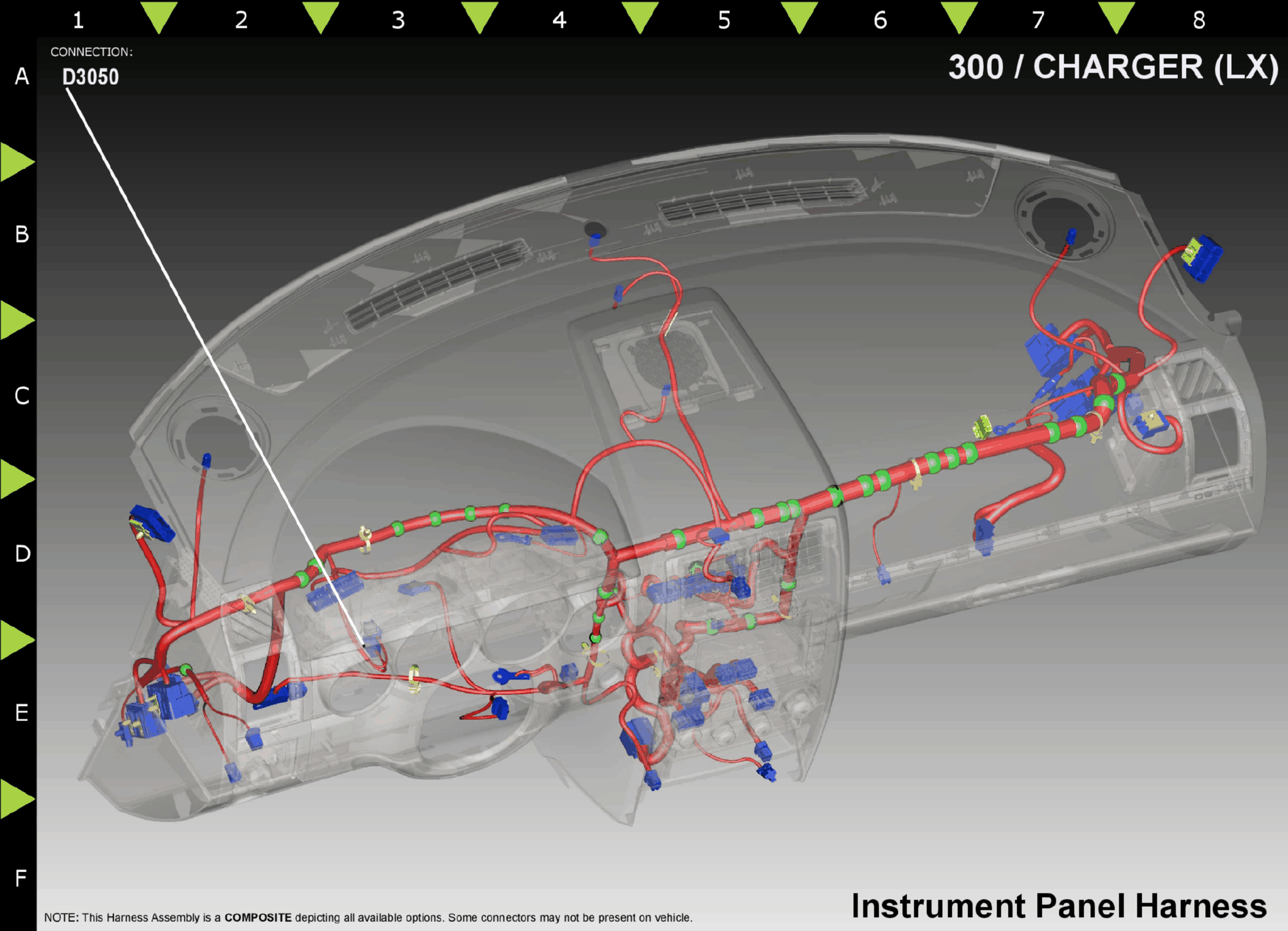

Fig 2: Motor-Steering Telescope Component Location

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	P953	DG	16	STEERING MOTOR COMMON	N/A
2	P157	LB	16	TELESCOPE STEERING MOTOR FORWARD/REARWARD DRIVER	N/A
3	P152	TN	20	TELESCOPE STEERING FORWARD/REARWARD POSITION SENSE	N/A
4	G914	VT	20	SENSOR GROUND	N/A
