Motor-Seat Adjuster-Passenger Horizontal (D3025)

Harness-Family: Seat_Pass

Color: GRAY

Gender: FEMALE

Part Number: 1326490-3

Part Description: 4P RECEPTACLE HOUSING - 2X JPT + 2X MT3

Connector No: D3025

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 4

Fig 1: Motor-Seat Adjuster-Passenger Horizontal Connector End View

Courtesy of CHRYSLER

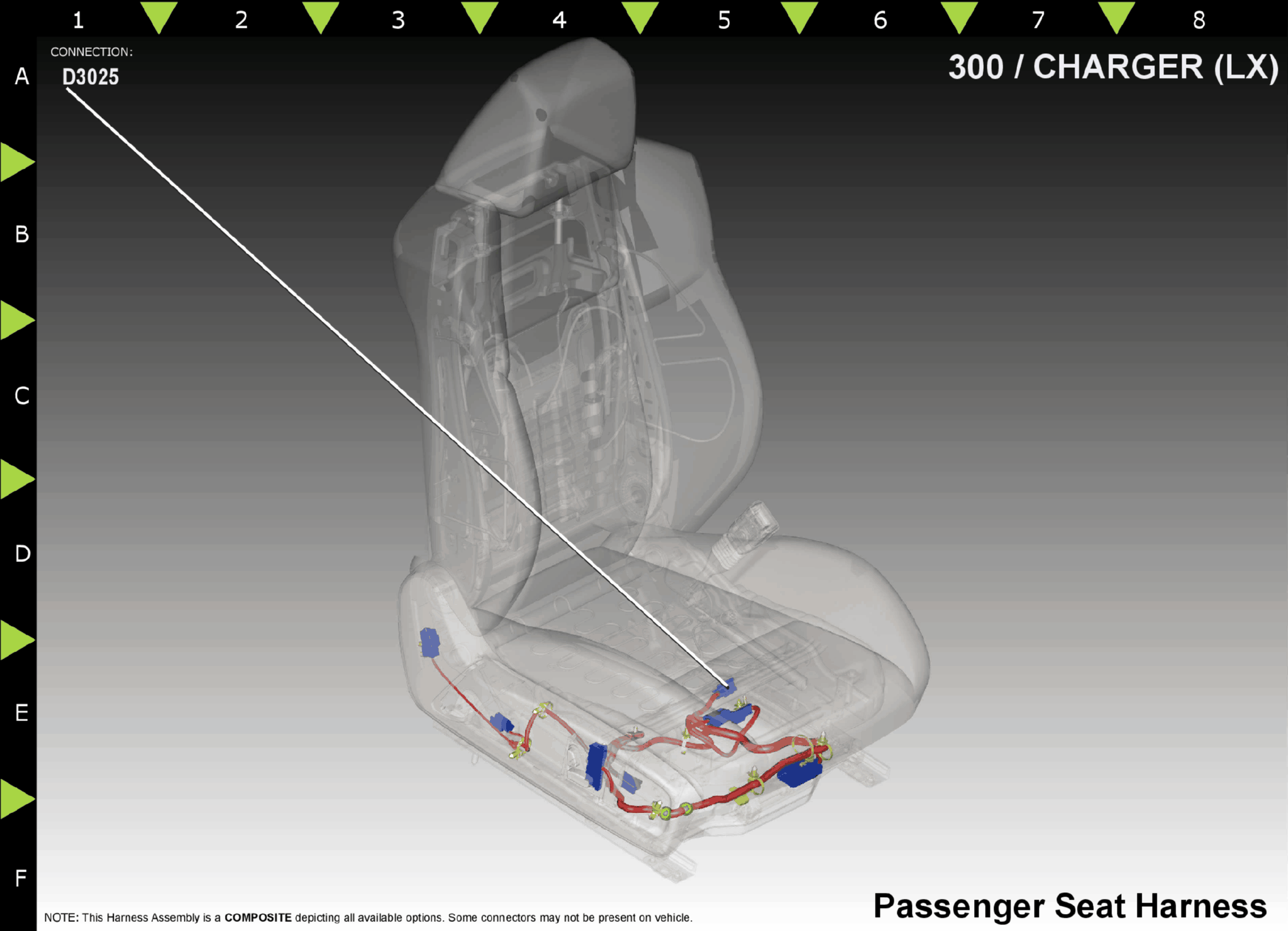

Fig 2: Motor-Seat Adjuster-Passenger Horizontal Component Location

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	P14	LG	16	PASSENGER SEAT HORIZONTAL FORWARD DRIVER	RHD
1	P16	LG	16	PASSENGER SEAT HORIZONTAL REARWARD DRIVER	LHD
2	P14	LG	16	PASSENGER SEAT HORIZONTAL FORWARD DRIVER	LHD
2	P16	LG	16	PASSENGER SEAT HORIZONTAL REARWARD DRIVER	RHD
