Motor-Seat Adjuster-Front Passenger Vertical (D3032)

Harness-Family: Seat_Pass

Color: GRAY

Gender: FEMALE

Part Number: 1326490-3

Part Description: 4P RECEPTACLE HOUSING - 2X JPT + 2X MT3

Connector No: D3032

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 4

Fig 1: Motor-Seat Adjuster-Front Passenger Vertical Connector End View
GCWD1006277Courtesy of CHRYSLER

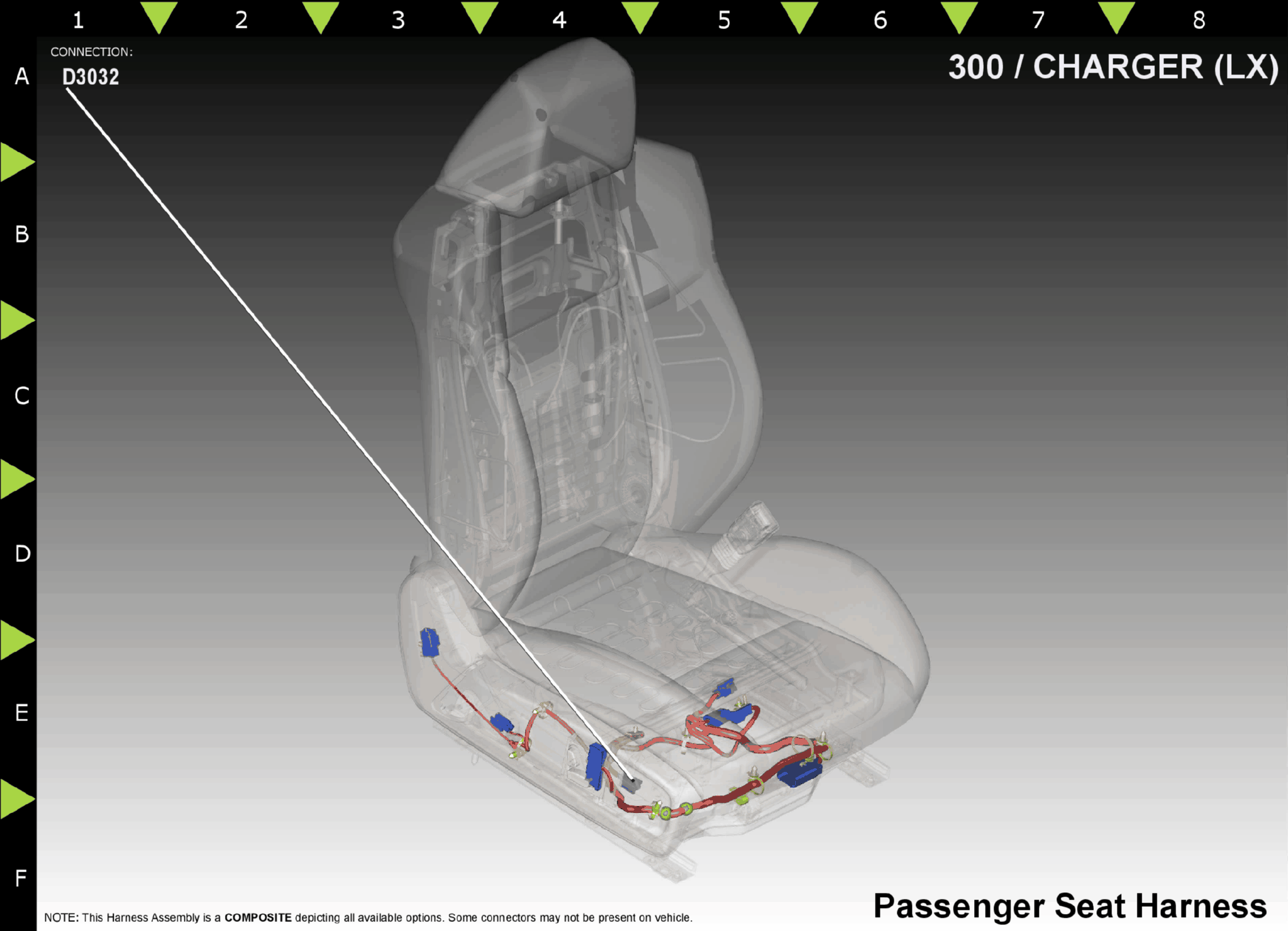

Fig 2: Motor-Seat Adjuster-Front Passenger Vertical Component Location
GCWD1018690Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 P20 LG 16 PASSENGER SEAT FRONT RISER DOWN DRIVER N/A
2 P18 LG 16 PASSENGER SEAT FRONT UP DRIVER N/A
