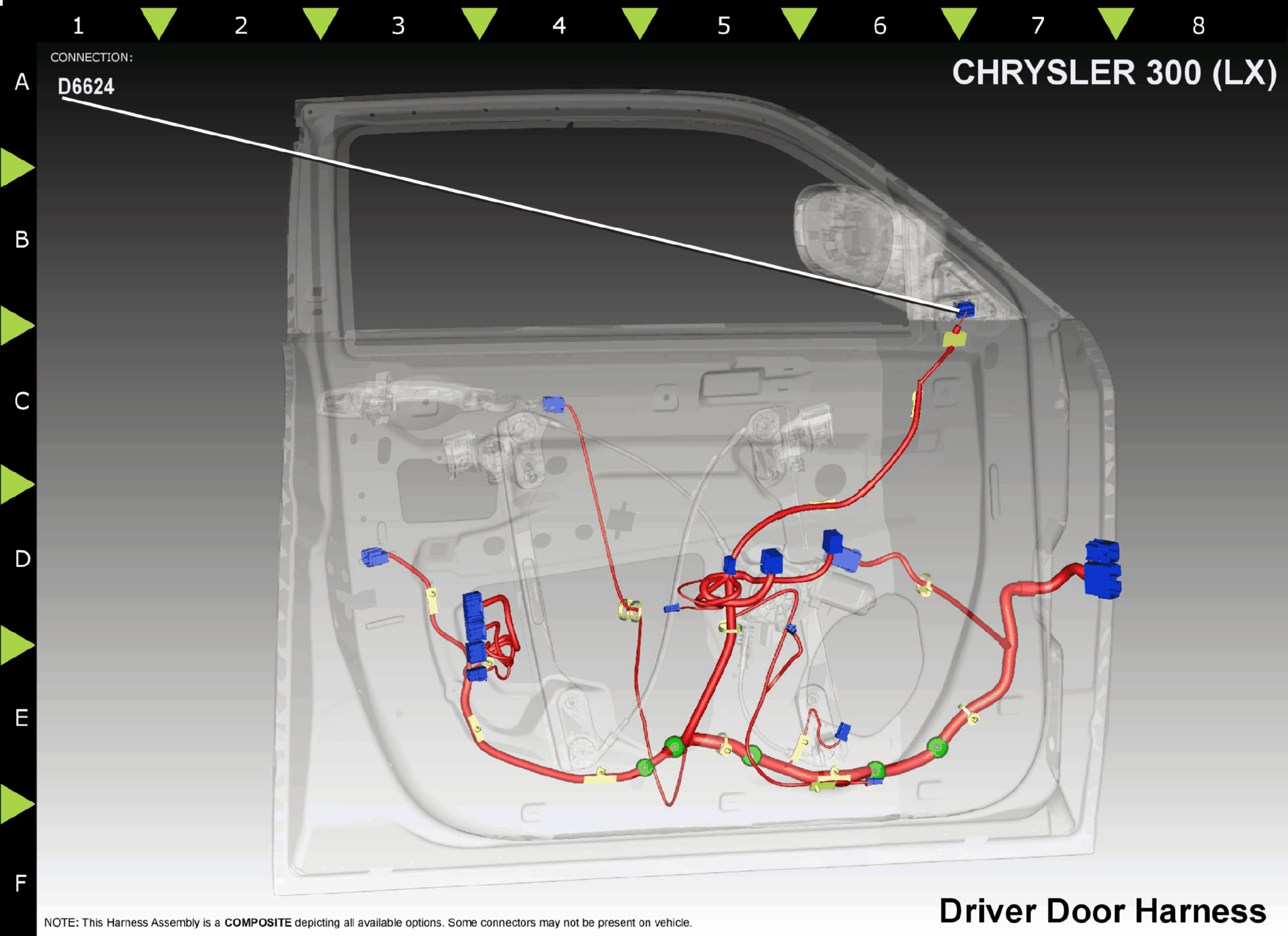

Mirror-Outside Rearview-Driver C1 (D6624)
Harness-Family: Door_Driver
Color: BLACK
Gender: FEMALE
Part Number: 174045-2
Part Description: INSULATOR
Connector No: D6624
Option: PREMIUM
Repair Kit Part Number: 05102402AA
Cavity Count: 12
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | Z912 | BK | 20 | GROUND | N/A |
| 10 | P69 | TN | 22 | DRIVER MIRROR SENSOR GROUND | N/A |
| 2 | P73 | TN | 20 | DRIVER MIRROR COMMON DRIVER | N/A |
| 3 | C110 | DB | 20 | MIRROR HEATER DRIVER | N/A |
| 4 | P71 | TN | 20 | DRIVER MIRROR VERTICAL DRIVER | N/A |
| 5 | P75 | TN | 20 | DRIVER MIRROR HORIZONTAL DRIVER | N/A |
| 6 | P145 | LG | 22 | DRIVER MIRROR POSITION SENSOR SUPPLY | N/A |
| 7 | P67 | TN | 22 | DRIVER MIRROR VERTICAL POSITION SIGNAL | N/A |
| 9 | P65 | TN | 22 | DRIVER MIRROR HORIZONTAL POSITION SIGNAL | N/A |
