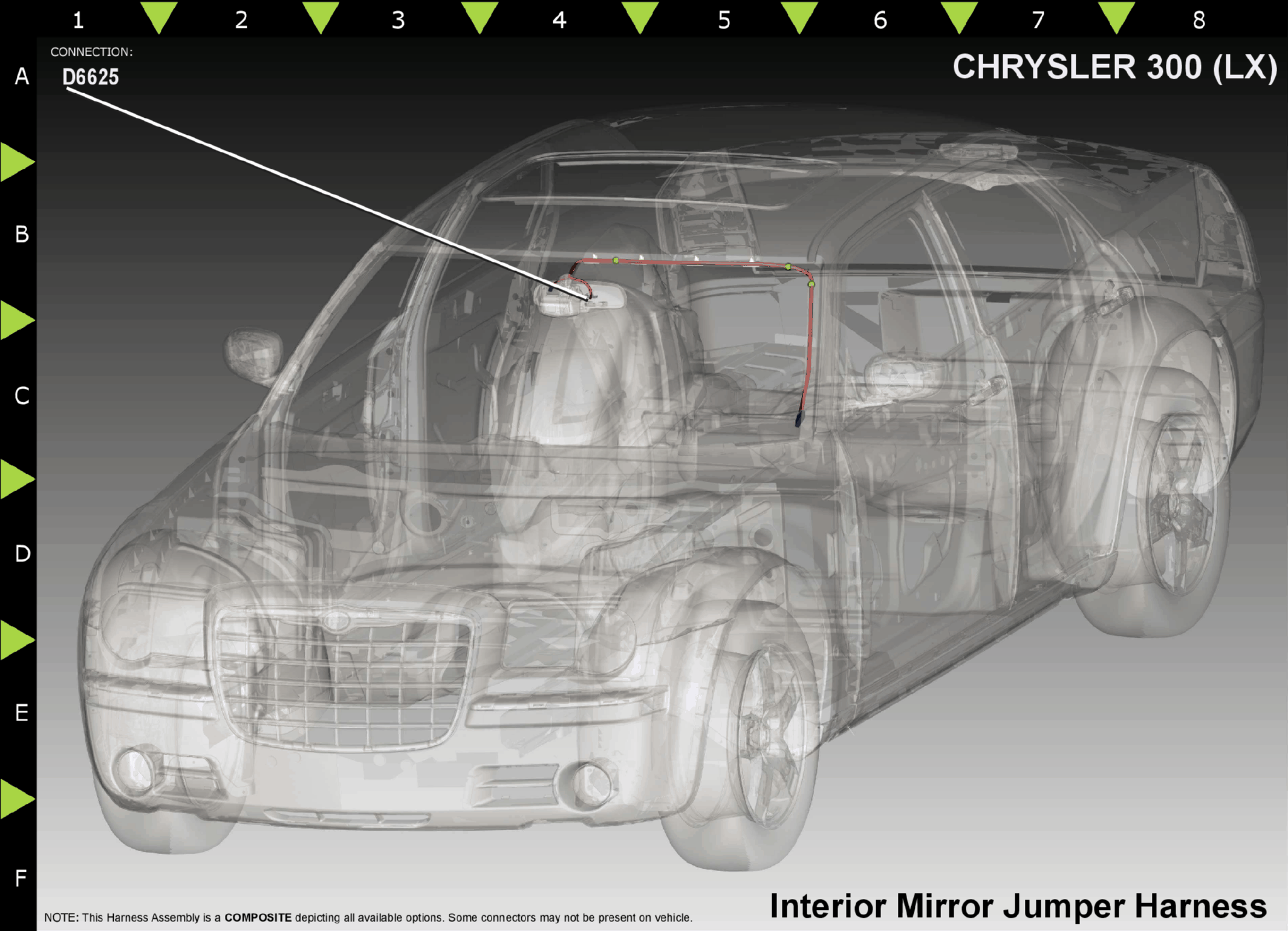

Mirror-Inside Rearview (D6625)
Harness-Family: Mirror_Int_Jumper
Color: DARK GRAY
Gender: FEMALE
Part Number: 917981-6
Part Description: INSULATOR
Connector No: D6625
Option: PREMIUM
Repair Kit Part Number: Not Available
Cavity Count: 16
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | X712 | BK | 20 | MICROPHONE 1 IN (+) | N/A |
| 10 | X835 | BK | 20 | SENSOR GROUND | N/A |
| 15 | X793 | BK | 20 | MICROPHONE FEED | N/A |
| 2 | Z909 | BK | 20 | GROUND | N/A |
| 2 | X792 | BK | 20 | MICROPHONE IN (-) | N/A |
| 3 | L1 | BK | 18 | BACKUP LAMP FEED | N/A |
| 3 | X722 | BK | 20 | MICROPHONE 2 IN (+) | N/A |
| 6 | D55 | BK | 20 | CAN B (+) | N/A |
| 7 | D54 | BK | 20 | CAN B (-) | N/A |
| 8 | Z909 | BK | 20 | GROUND | N/A |
