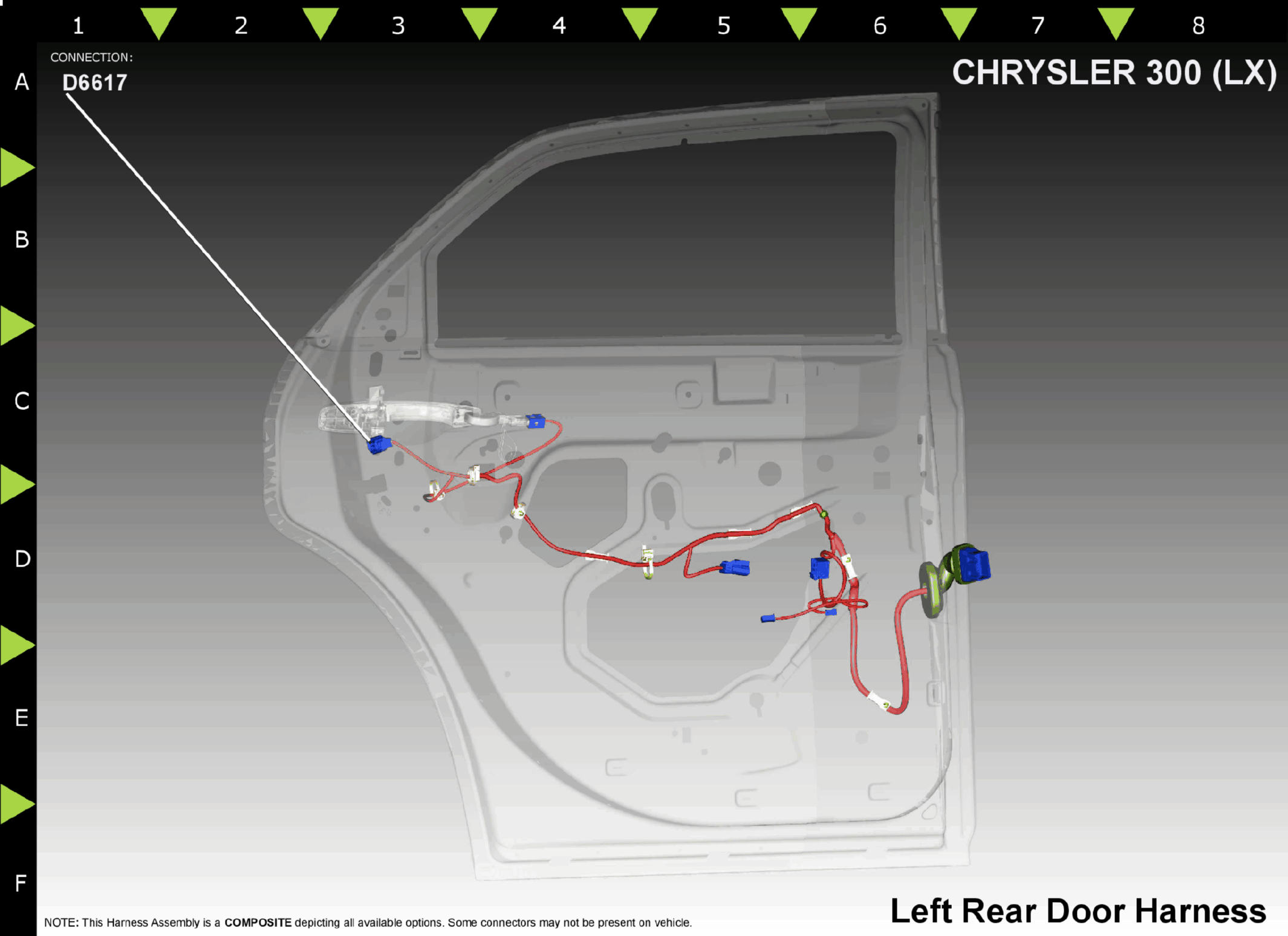

Latch-Door-Left Rear (D6617)
Harness-Family: Door_Left_Rear
Color: BLACK
Gender: FEMALE
Part Number: 7283-7040-30
Part Description: 090 II 4POLE SEALED INSL
Connector No: D6617
Option: Standard
Repair Kit Part Number: 05161916AA
Cavity Count: 4
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | G77 | VT | 22 | LEFT REAR DOOR AJAR SWITCH SENSE | N/A |
| 2 | Z912 | BK | 22 | GROUND | N/A |
| 3 | P303 | TN | 22 | PASSENGER DOOR UNLOCK DRIVER | N/A |
| 4 | P393 | LG | 22 | DOOR LOCK DRIVER LEFT DOORS | N/A |
