Lamp-Courtesy-Right Rear (D4524)

Harness-Family: Headliner

Color: BLACK

Gender: FEMALE

Part Number: 12047781

Part Description: 3 WAY INSULATOR

Connector No: D4524

Option: Standard

Repair Kit Part Number: 68057289AA

Cavity Count: 3

Fig 1: Lamp-Courtesy-Right Rear Connector End View
GCWD1006598Courtesy of CHRYSLER

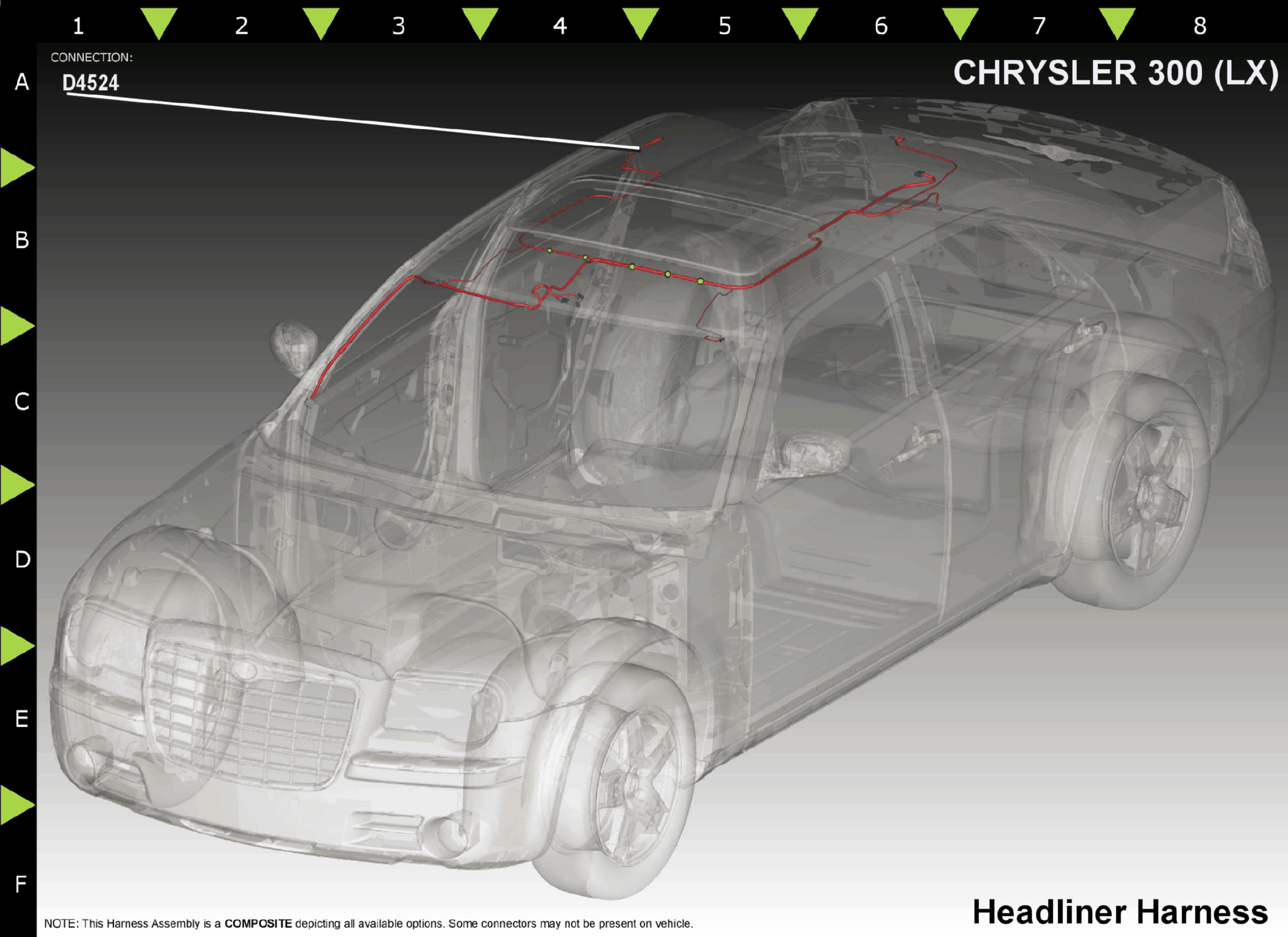

Fig 2: Lamp-Courtesy-Right Rear Component Location
GCWD1023180Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
A M24 YL 20 COURTESY LAMPS DRIVER N/A
B Z909 BK 20 GROUND N/A
C M27 YL 20 READING LAMPS DRIVER N/A
