Horn 1 (D5905)

Harness-Family: HDLP_Dash

Color: BLACK

Gender: FEMALE

Part Number: 7123-5014-30

Part Description: INSULATOR

Connector No: D5905

Option: Standard

Repair Kit Part Number: 68018942AA

Cavity Count: 1

Fig 1: Horn 1 Connector End View

GCWD1014523

Courtesy of CHRYSLER

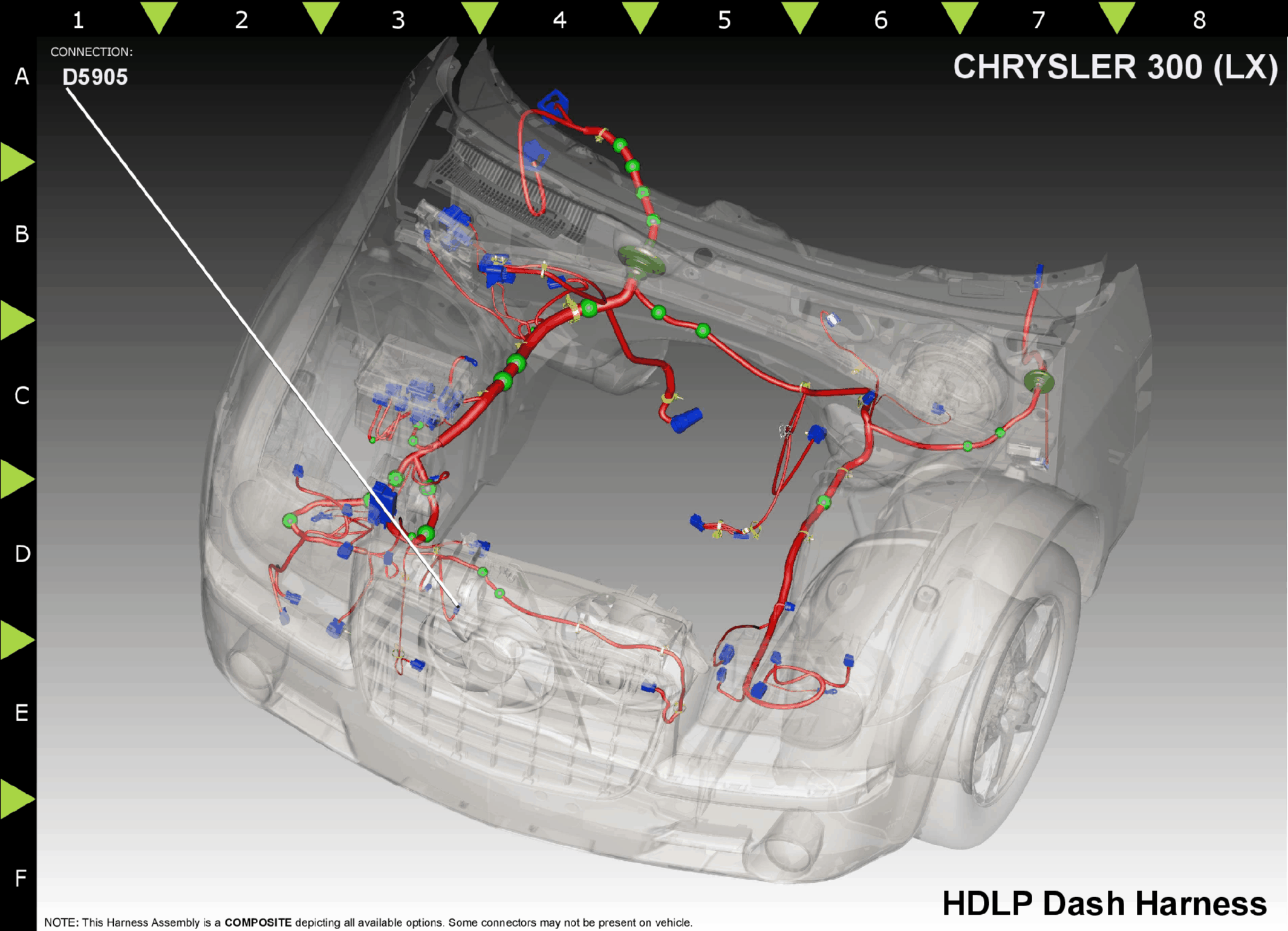

Fig 2: Horn 1 Component Location

GCWD1017999

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	X2	DG	18	HORN CONTROL OUTPUT	N/A
