Heater-Seat Back-Right (D6736)

Harness-Family: Seat_Pass_2

Color: GREEN

Gender: MALE

Part Number: 7282-5680-60

Part Description: 2P 1.5MM YESC UNSEALED MALE SUB-ASSEMBLY

Connector No: D6736

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Heater-Seat Back-Right Connector End View

Courtesy of CHRYSLER

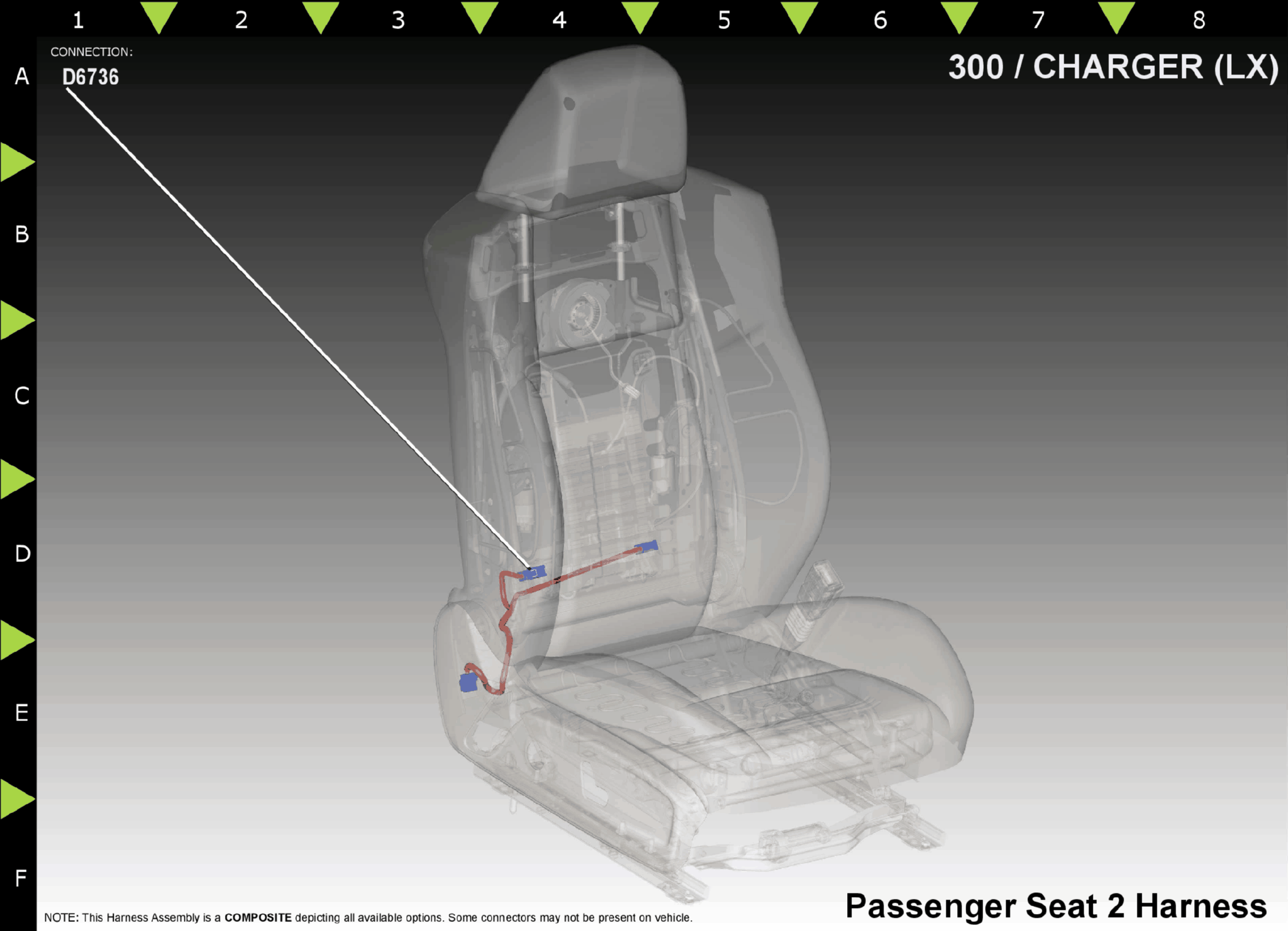

Fig 2: Heater-Seat Back-Right Component Location

Courtesy of CHRYSLER
