Fuse F04 40A (Fl519)

Harness-Family: Virtual_PDC

Color: NA

Gender: MALE

Part Number: Fuse-Ckt_Breaker

Part Description: Not Available

Connector No: FL519

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: Fuse F04 40a Connector End View

GCWD1006305

Courtesy of CHRYSLER

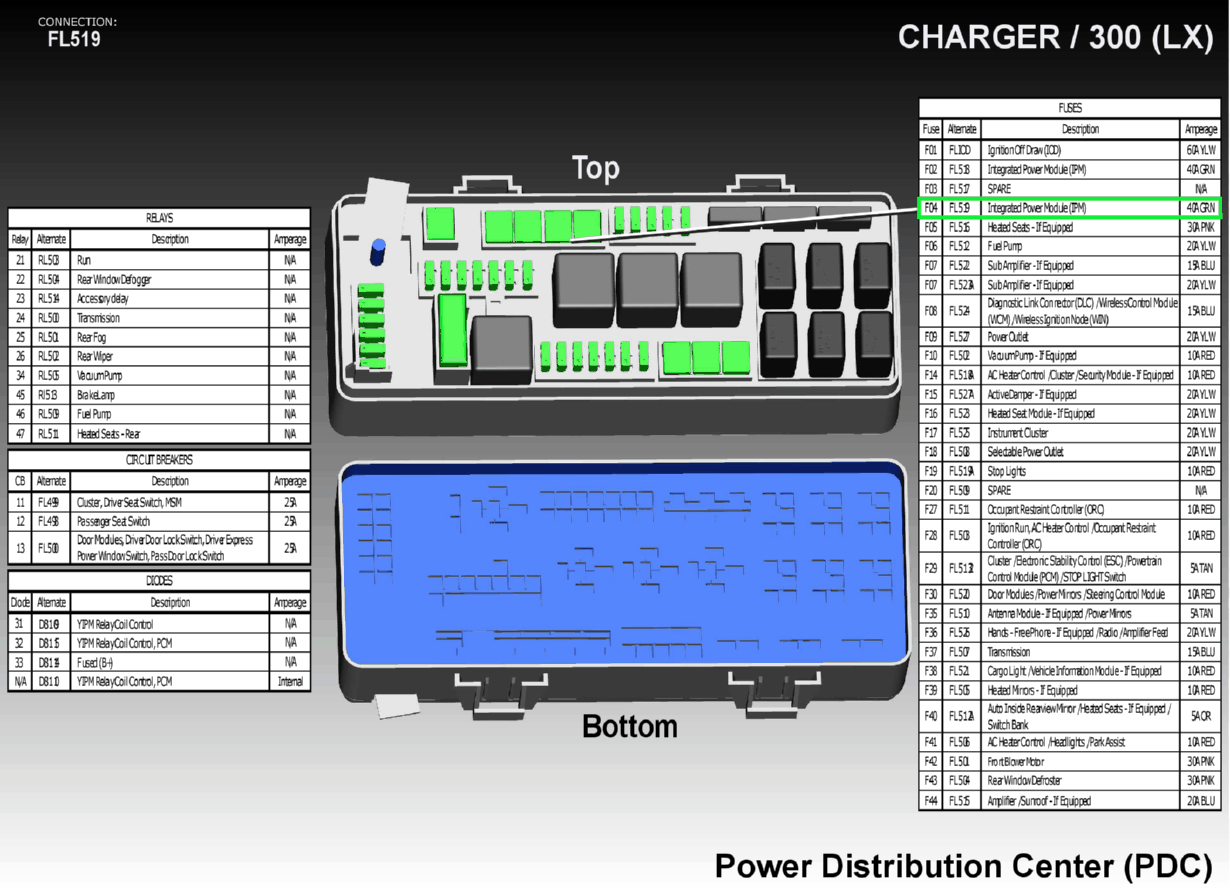

Fig 2: Fuse F04 40a Component Location

GCWD1021751

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	A1	INTERNAL	NA	FUSED B(+)	N/A
2	A22	INTERNAL	NA	FUSED B(+)	N/A
