Circuit Breaker 13 25A - (PDC) (Fl500)

Harness-Family: Virtual_PDC

Color: NA

Gender: MALE

Part Number: Fuse-Ckt_Breaker

Part Description: Not Available

Connector No: FL500

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: Circuit Breaker 13 25a - (pdc) Connector End View
GCWD1006305Courtesy of CHRYSLER

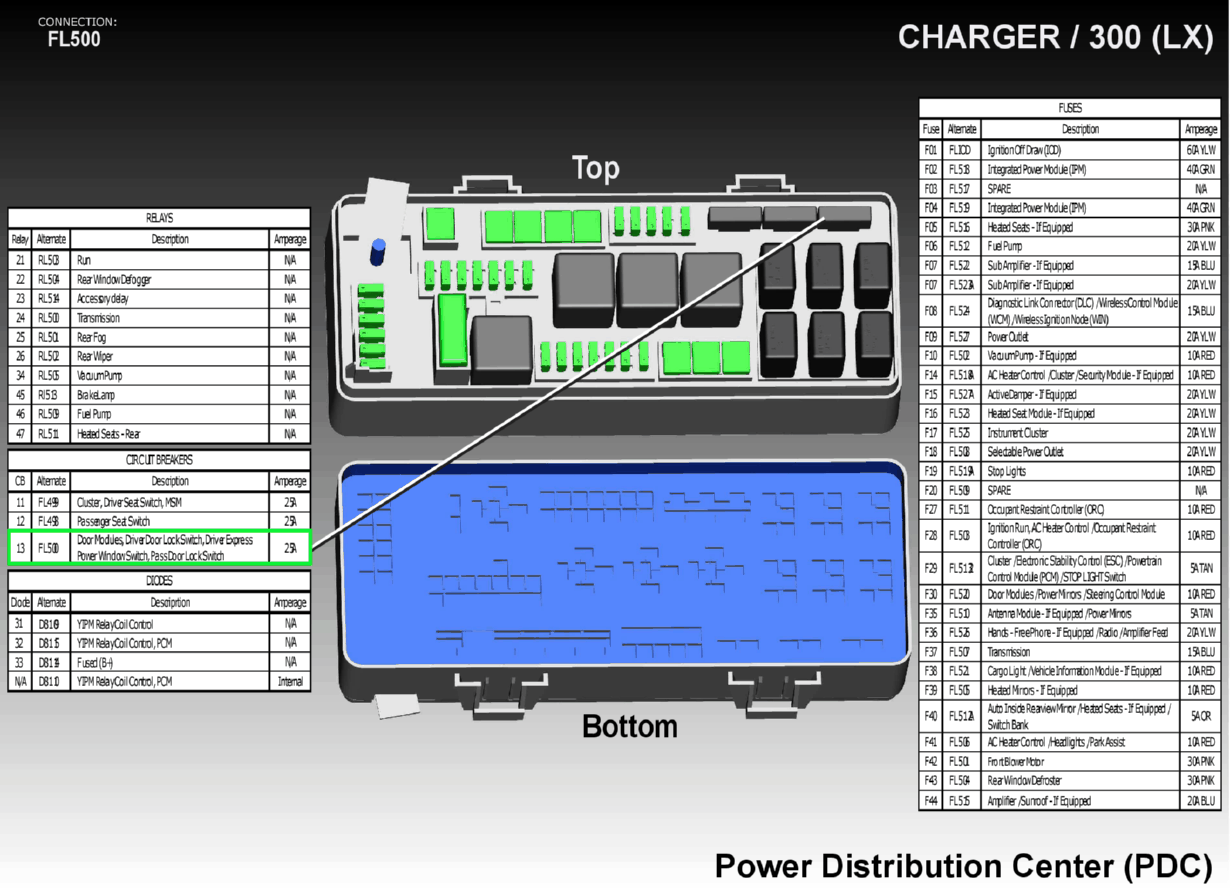

Fig 2: Circuit Breaker 13 25a - (pdc) Component Location
GCWD1021762Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 F981 INTERNAL NA FUSED IGNITION RUN/ACCESSORY CONTROL OUTPUT N/A
2 F881 INTERNAL NA FUSED ACCESSORY DELAY RELAY OUTPUT N/A
