Circuit Breaker 12 25A - (PDC) (Fl498)

Harness-Family: Virtual_PDC

Color: NA

Gender: MALE

Part Number: Fuse-Ckt_Breaker

Part Description: Not Available

Connector No: FL498

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: Circuit Breaker 12 25a - (pdc) Connector End View
GCWD1006305Courtesy of CHRYSLER

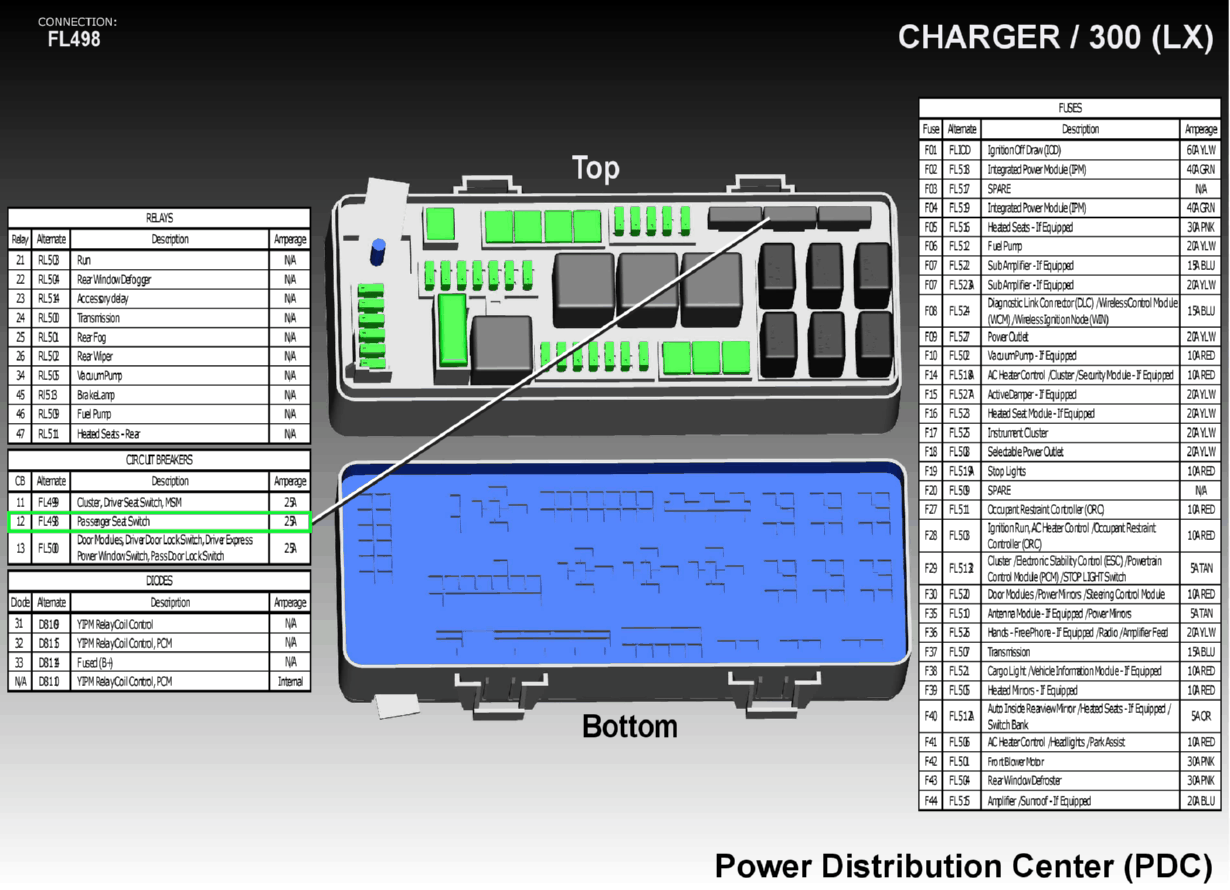

Fig 2: Circuit Breaker 12 25a - (pdc) Component Location
GCWD1023801Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
A A1 INTERNAL NA FUSED B(+) N/A
B A916 INTERNAL NA FUSED B(+) N/A
