Circuit Breaker 11 25A - (PDC) (Fl499)

Harness-Family: Virtual_PDC

Color: NA

Gender: MALE

Part Number: Fuse-Ckt_Breaker

Part Description: Not Available

Connector No: FL499

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: Circuit Breaker 11 25a - (pdc) Connector End View
GCWD1006305Courtesy of CHRYSLER

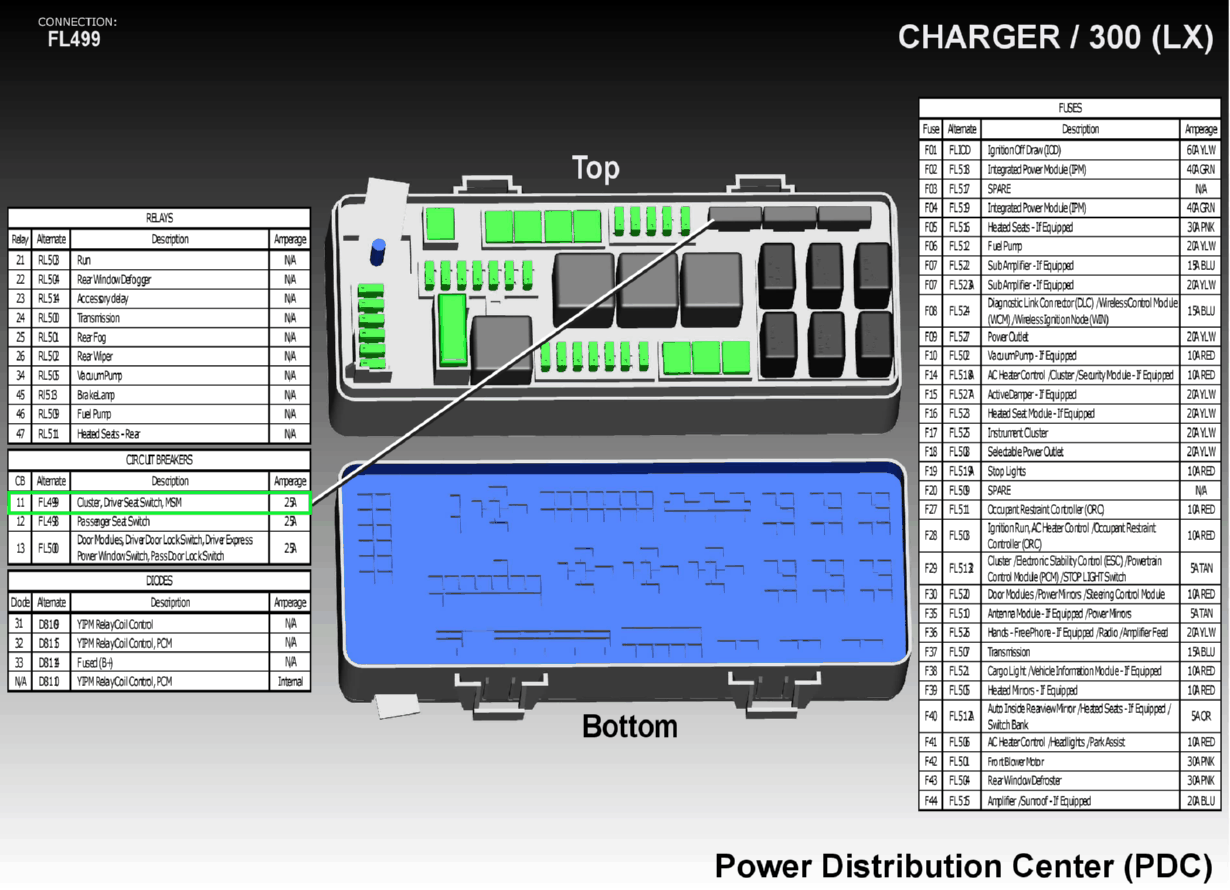

Fig 2: Circuit Breaker 11 25a - (pdc) Component Location
GCWD1023800Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
A A110 INTERNAL NA FUSED B(+) N/A
B A1 INTERNAL NA FUSED B(+) N/A
