Battery (-) (D7400B)

Harness-Family: Battery_Negative

Color: NA

Gender: FEMALE

Part Number: CPT BT64-018

Part Description: BATTERY TERMINAL NEGATIVE

Connector No: D7400B

Option: 2.7L/3.5L

Repair Kit Part Number: 05161517AA

Cavity Count: 0

Fig 1: Battery (-) Connector End View

GCWD1025445

Courtesy of CHRYSLER

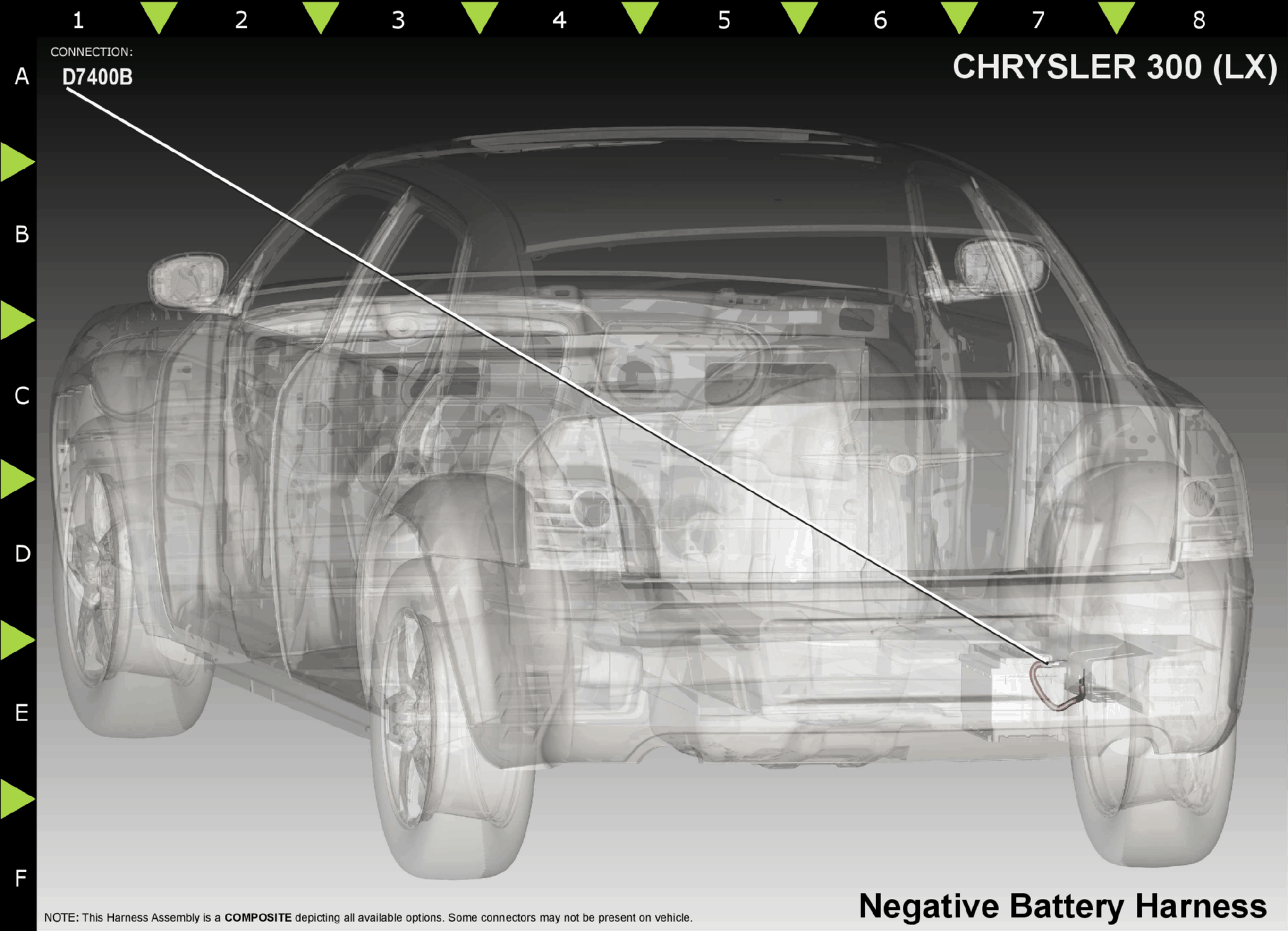

Fig 2: Battery (-) Component Location

GCWD1022087

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
B1	Z915	BK	06F	GROUND	N/A
