Amplifier-Radio C1 (D3804A)

Harness-Family: IP

Color: WHITE

Gender: FEMALE

Part Number: 174952-1

Part Description: INSULATOR

Connector No: D3804A

Option: Standard

Repair Kit Part Number: 05183484AA

Cavity Count: 20

Fig 1: Amplifier-Radio C1 Connector End View

GCWD1024300

Courtesy of CHRYSLER

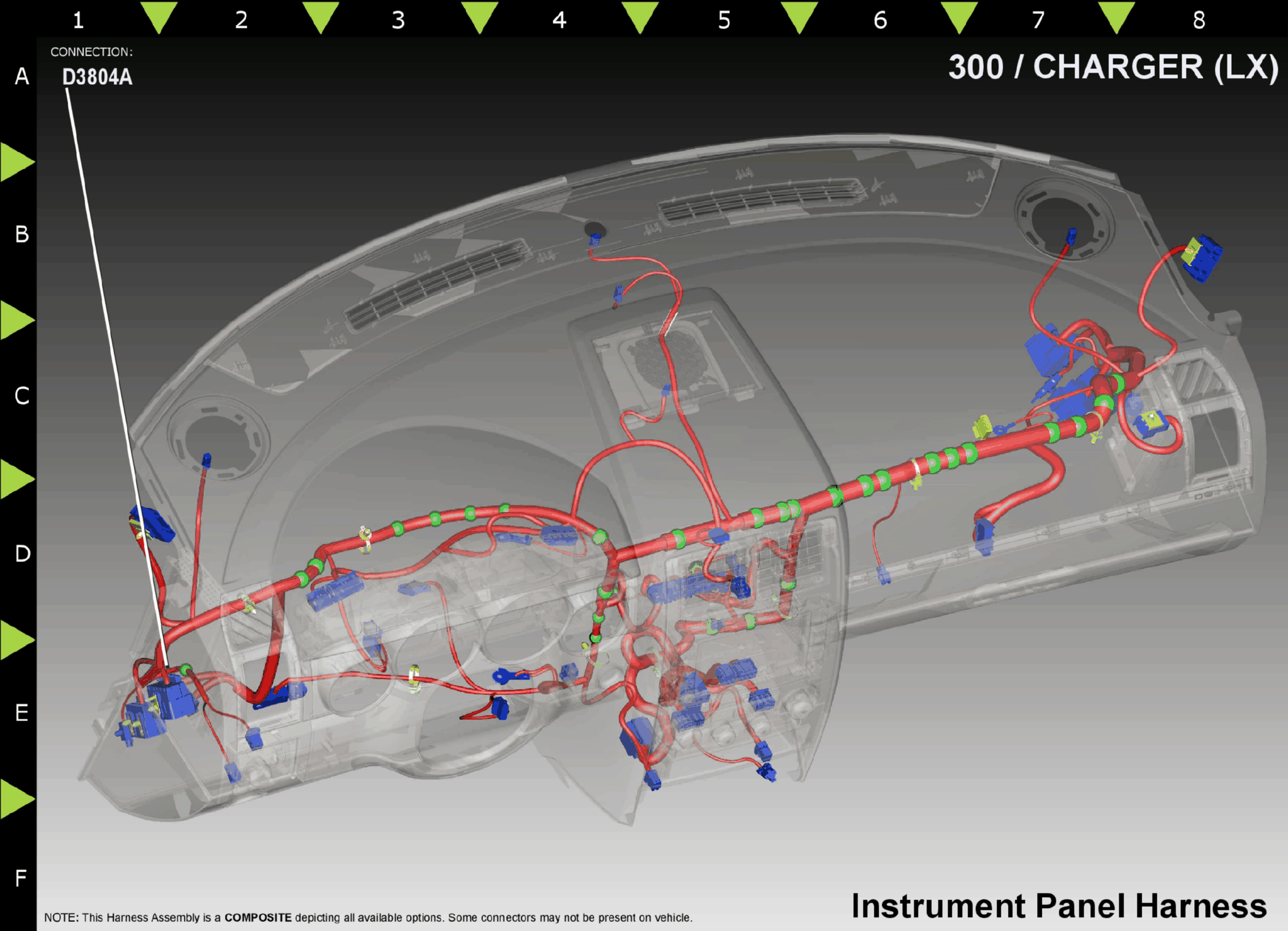

Fig 2: Amplifier-Radio C1 Component Location

GCWD1020498

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
A1	X209	GY	18	AMPLIFIED LEFT I/P SPEAKER (+)	N/A
A10	X299	GY	18	AMPLIFIED LEFT I/P SPEAKER (-)	N/A
A11	X298	GY	18	AMPLIFIED RIGHT I/P SPEAKER (-)	N/A
A12	X290	GY	18	AMPLIFIED CENTER I/P SPEAKER (-)	N/A
A13	X13	DG	16	FUSED B(+)	N/A
A17	D54	WT	22	CAN B (-)	N/A
A18	X57	DG	18	LEFT AUDIO SIGNAL (-)	N/A
A19	X58	GY	18	RIGHT AUDIO SIGNAL (-)	N/A
A2	X208	GY	18	AMPLIFIED RIGHT I/P SPEAKER (+)	N/A
A20	Z910	BK	16	GROUND	N/A
A3	X200	GY	18	AMPLIFIED CENTER I/P SPEAKER (+)	N/A
A4	X13	DG	16	FUSED B(+)	N/A
A6	D55	WT	22	CAN B (+)	N/A
A7	X51	DG	18	LEFT AUDIO SIGNAL (+)	N/A
A8	X52	GY	18	RIGHT AUDIO SIGNAL (+)	N/A
A9	Z910	BK	16	GROUND	N/A
