Amplifier-Antenna-BACKLITE C3 (D3802C)

Harness-Family: Body

Color: BLACK

Gender: MALE

Part Number: 3SU00447

Part Description: COAXIAL LOCKING CONNECTOR

Connector No: D3802C

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

Fig 1: Amplifier-Antenna-Backlite C3 Connector End View
GCWD1025451Courtesy of CHRYSLER

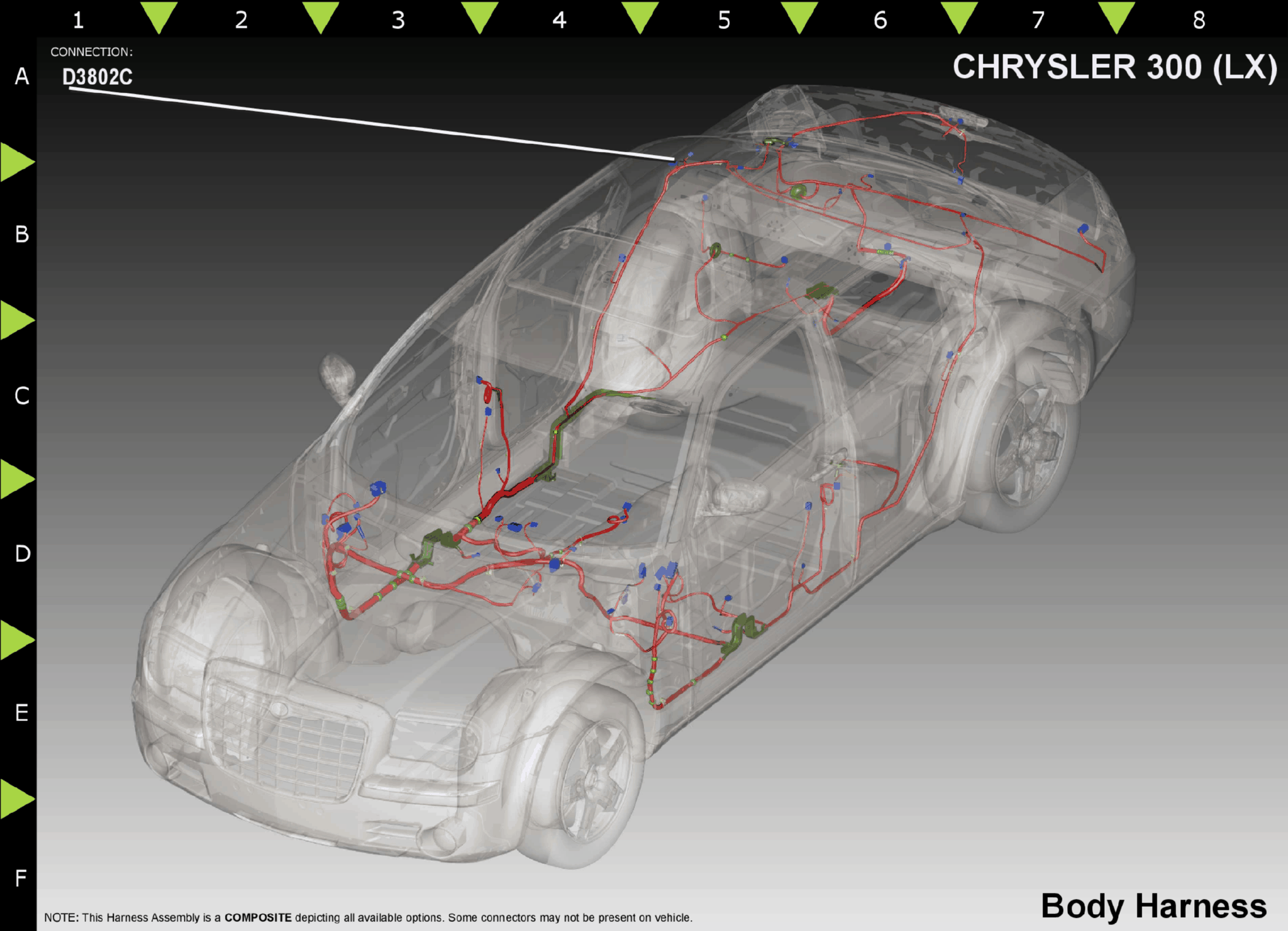

Fig 2: Amplifier-Antenna-Backlite C3 Component Location
GCWD1022391Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
C1 D5 BK 06 ANTENNA SIGNAL N/A
C1 D931 BK 999 ANTENNA SHIELD N/A
