Amplifier-Antenna-BACKLITE C1 (D3802A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 1384

Part Description: INSULATOR 3 WAY

Connector No: D3802A

Option: Standard

Repair Kit Part Number: 68057308AA

Cavity Count: 3

Fig 1: Amplifier-Antenna-Backlite C1 Connector End View
GCWD1016831Courtesy of CHRYSLER

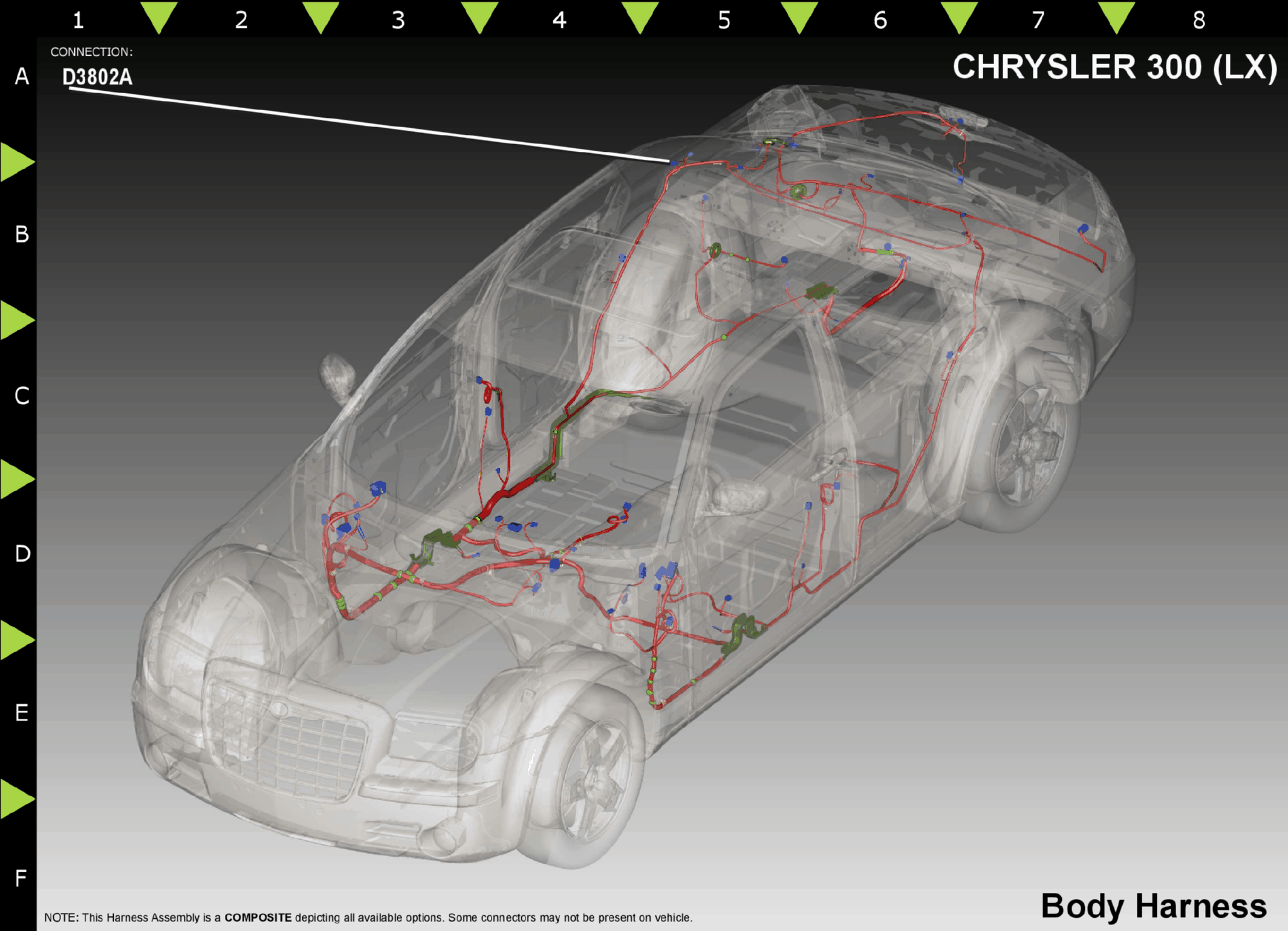

Fig 2: Amplifier-Antenna-Backlite C1 Component Location
GCWD1022395Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
A1 C15 DB 14 REAR WINDOW DEFOGGER CONTROL OUTPUT N/A
A3 F880 PK 22 FUSED ACCESSORY DELAY RELAY OUTPUT N/A
