Airbag-Driver Squib 2 (D6663B)

Harness-Family: Airbag

Color: YELLOW

Gender: FEMALE

Part Number: 54550266

Part Description: CONNECTOR ASSEMBLY (ABX-3 AIRBAG)

Connector No: D6663B

Option: Standard

Repair Kit Part Number: 68053130AA

Cavity Count: 2

Fig 1: Airbag-Driver Squib 2 Connector End View
GCWD1006424Courtesy of CHRYSLER

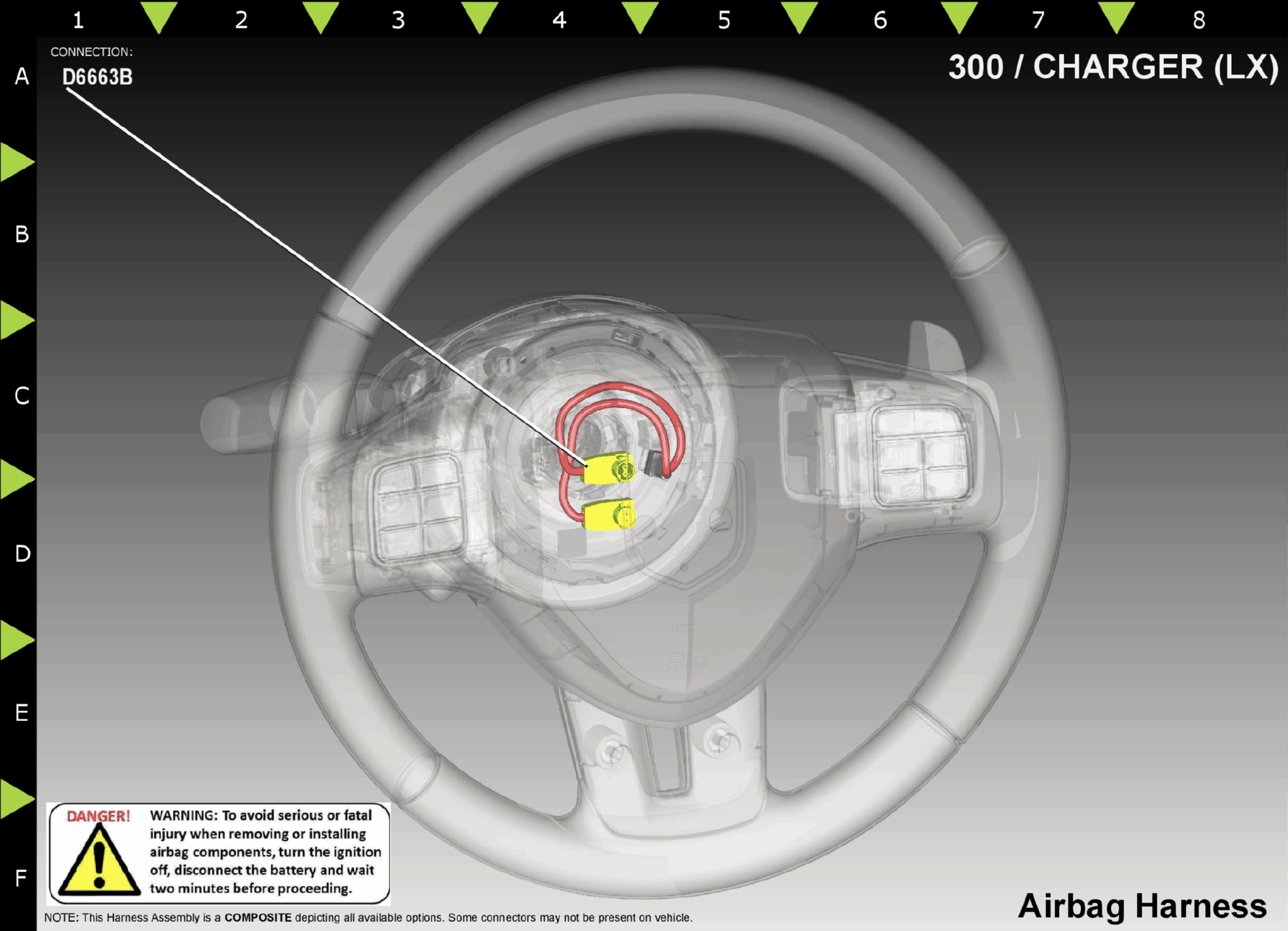

Fig 2: Airbag-Driver Squib 2 Component Location
GCWD1023177Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 R63 LG 20 DRIVER SQUIB 2 LINE 1 N/A
2 R61 LG 20 DRIVER SQUIB 2 LINE 2 N/A
