Airbag-Driver Squib 1 (D6663A)

Harness-Family: Airbag

Color: YELLOW

Gender: FEMALE

Part Number: 54550268

Part Description: CONNECTOR ASSEMBLY (ABX-3 AIRBAG)

Connector No: D6663A

Option: Standard

Repair Kit Part Number: 68053131AA

Cavity Count: 2

Fig 1: Airbag-Driver Squib 1 Connector End View
GCWD1025443Courtesy of CHRYSLER

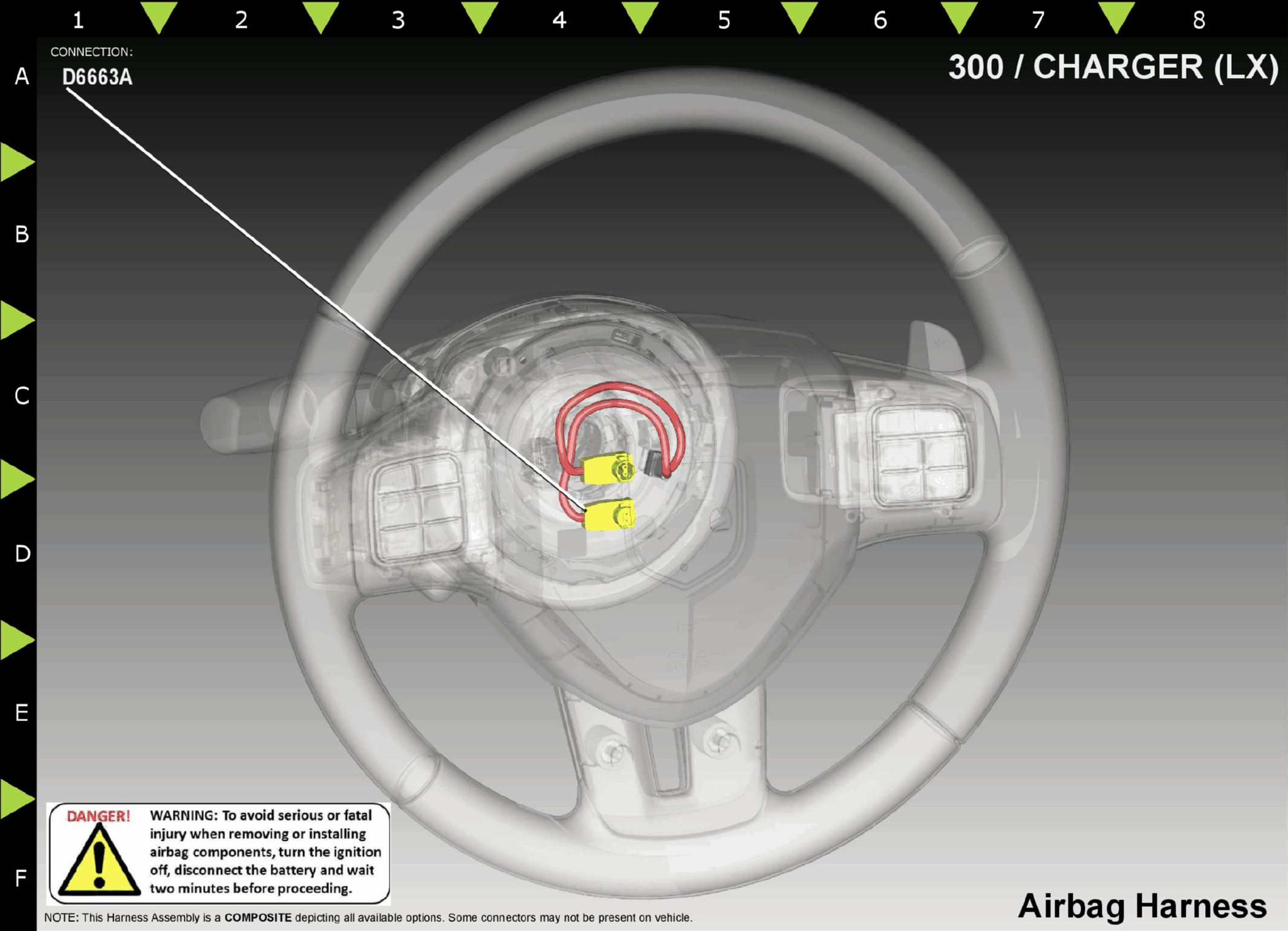

Fig 2: Airbag-Driver Squib 1 Component Location
GCWD1023174Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 R45 LG 20 DRIVER SQUIB 1 LINE 1 N/A
2 R43 LG 20 DRIVER SQUIB 1 LINE 2 N/A
