Speaker-Right Rear (D5919)

Harness-Family: Body

Color: NATURAL

Gender: FEMALE

Part Number: 174921-1

Part Description: 070 SERIES MULTILOCK CONNECTOR PLUG HSG

Connector No: D5919

Option: Standard

Repair Kit Part Number: 68040489AA

Cavity Count: 3

Fig 1: Speaker-Right Rear Connector End View
GCWD1006318Courtesy of CHRYSLER

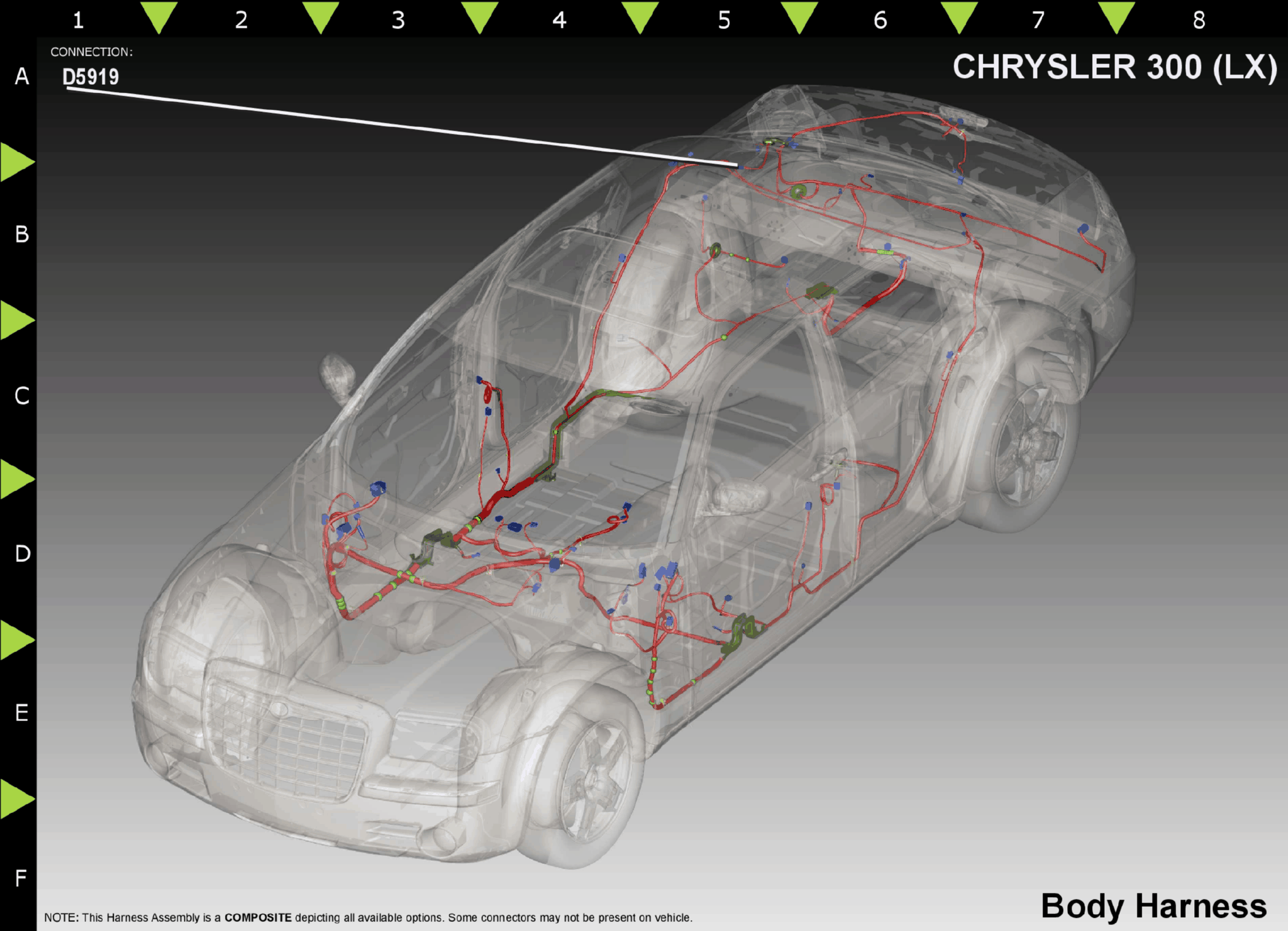

Fig 2: Speaker-Right Rear Component Location
GCWD1022293Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 X394 YL 18 RIGHT REAR SPEAKER (-) N/A
3 X304 DG 18 RIGHT REAR SPEAKER (+) N/A
