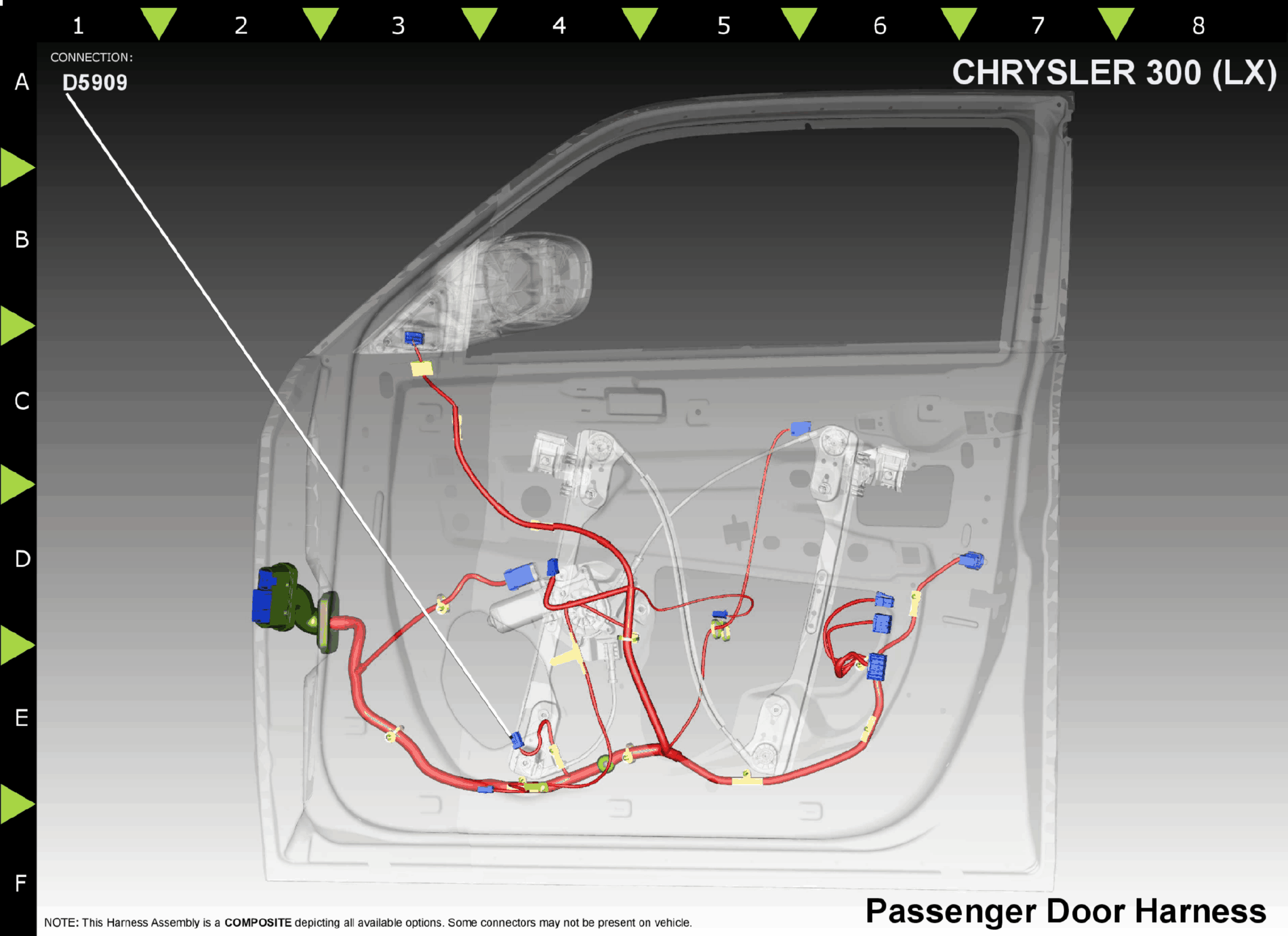

Speaker-Right Front Door (D5909)
Harness-Family: Door_Pass
Color: NATURAL
Gender: FEMALE
Part Number: 174921-1
Part Description: 070 SERIES MULTILOCK CONNECTOR PLUG HSG
Connector No: D5909
Option: LHD
Repair Kit Part Number: 68040489AA
Cavity Count: 3
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | X292 | DG | 18 | RIGHT FRONT SPEAKER (-) | N/A |
| 3 | X202 | DG | 18 | RIGHT FRONT SPEAKER (+) | N/A |
