Seat Belt-Retractor TENSIONER-Passenger (D6676)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: SQMR-02H-1A-K

Part Description: SQM CONNECTOR HOUSING

Connector No: D6676

Option: Standard

Repair Kit Part Number: 68001949AA

Cavity Count: 2

Fig 1: Seat Belt-Retractor Tensioner-Passenger Connector End View
GCWD1014340Courtesy of CHRYSLER

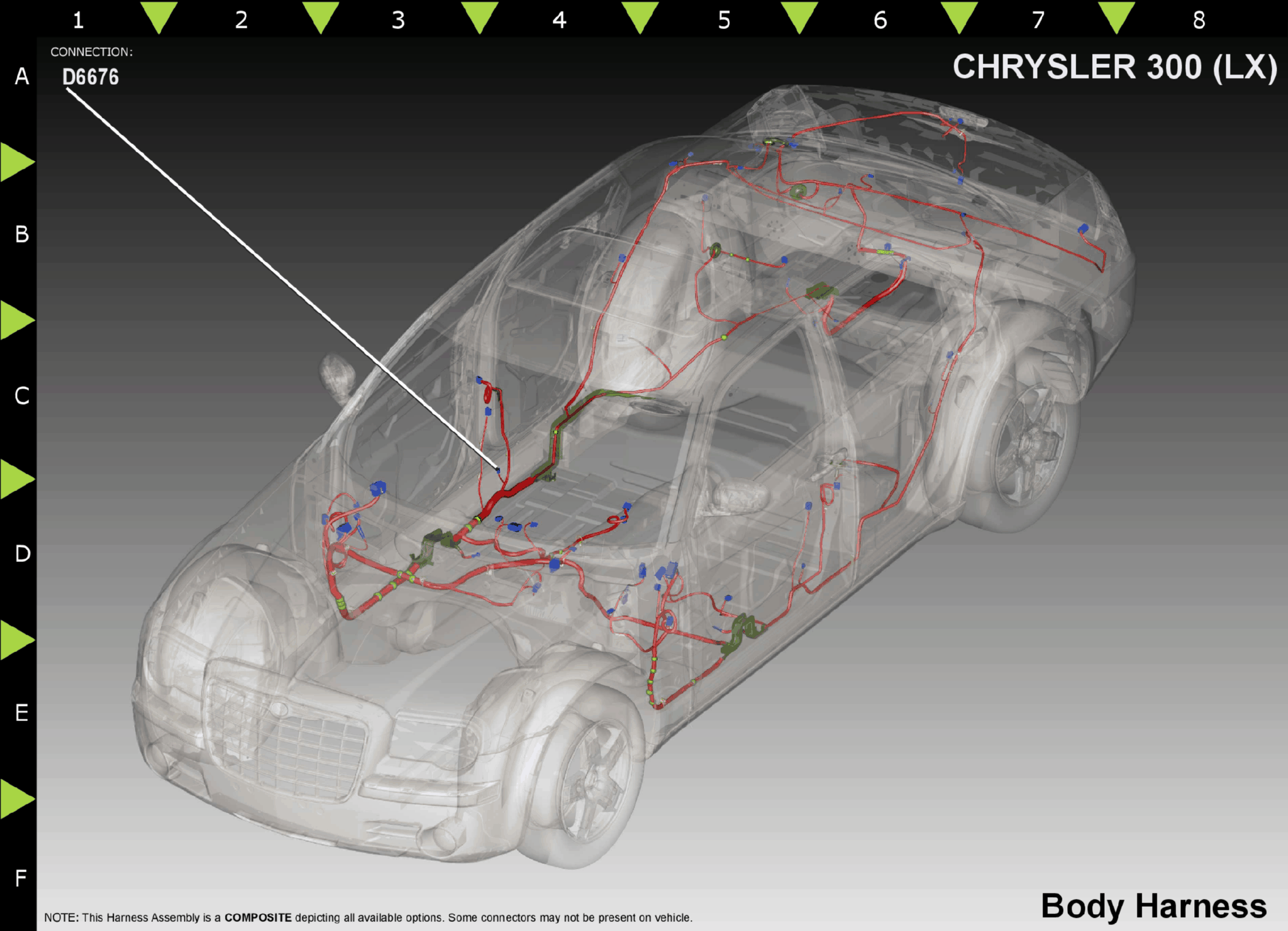

Fig 2: Seat Belt-Retractor Tensioner-Passenger Component Location
GCWD1019626Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 R506 LB 20 PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 1 N/A
2 R504 LB 20 PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2 N/A
