Seat Belt-Retractor TENSIONER-Driver (D6673)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: SQMR-02H-1A-K

Part Description: SQM CONNECTOR HOUSING

Connector No: D6673

Option: Standard

Repair Kit Part Number: 68001949AA

Cavity Count: 2

Fig 1: Seat Belt-Retractor Tensioner-Driver Connector End View
GCWD1014340Courtesy of CHRYSLER

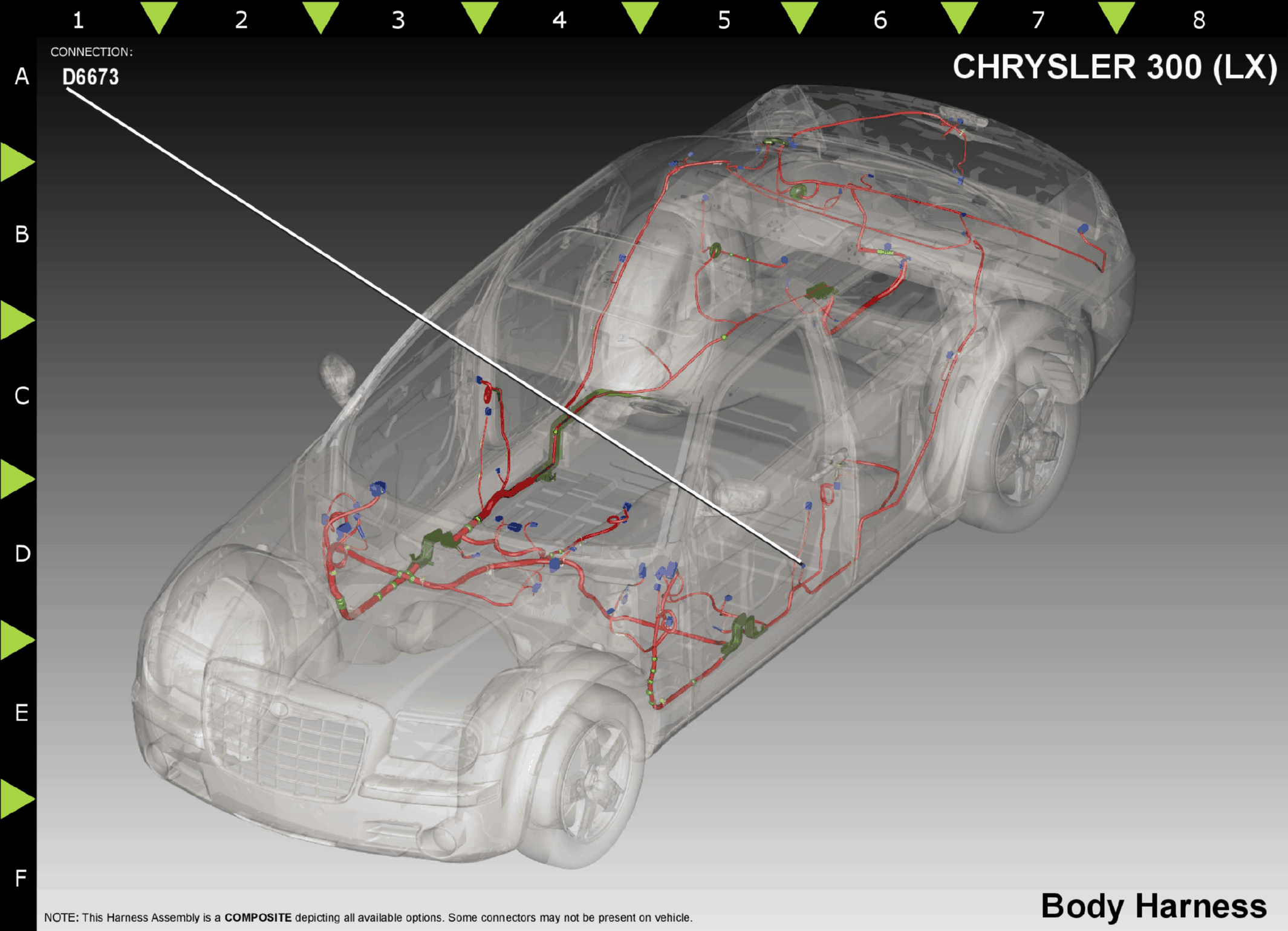

Fig 2: Seat Belt-Retractor Tensioner-Driver Component Location
GCWD1019627Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 R503 LG 20 DRIVER SEAT BELT RETRACTOR TENSIONER LINE 2 N/A
2 R505 LG 20 DRIVER SEAT BELT RETRACTOR TENSIONER LINE 1 N/A
