Motor-Seat Adjuster-Passenger Recliner (D3029)

Harness-Family: Seat_Pass_2

Color: NATURAL

Gender: FEMALE

Part Number: 772-717-502

Part Description: SLK 2.8 CONNECTOR

Connector No: D3029

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 4

Fig 1: Motor-Seat Adjuster-Passenger Recliner Connector End View
GCWD1025407Courtesy of CHRYSLER

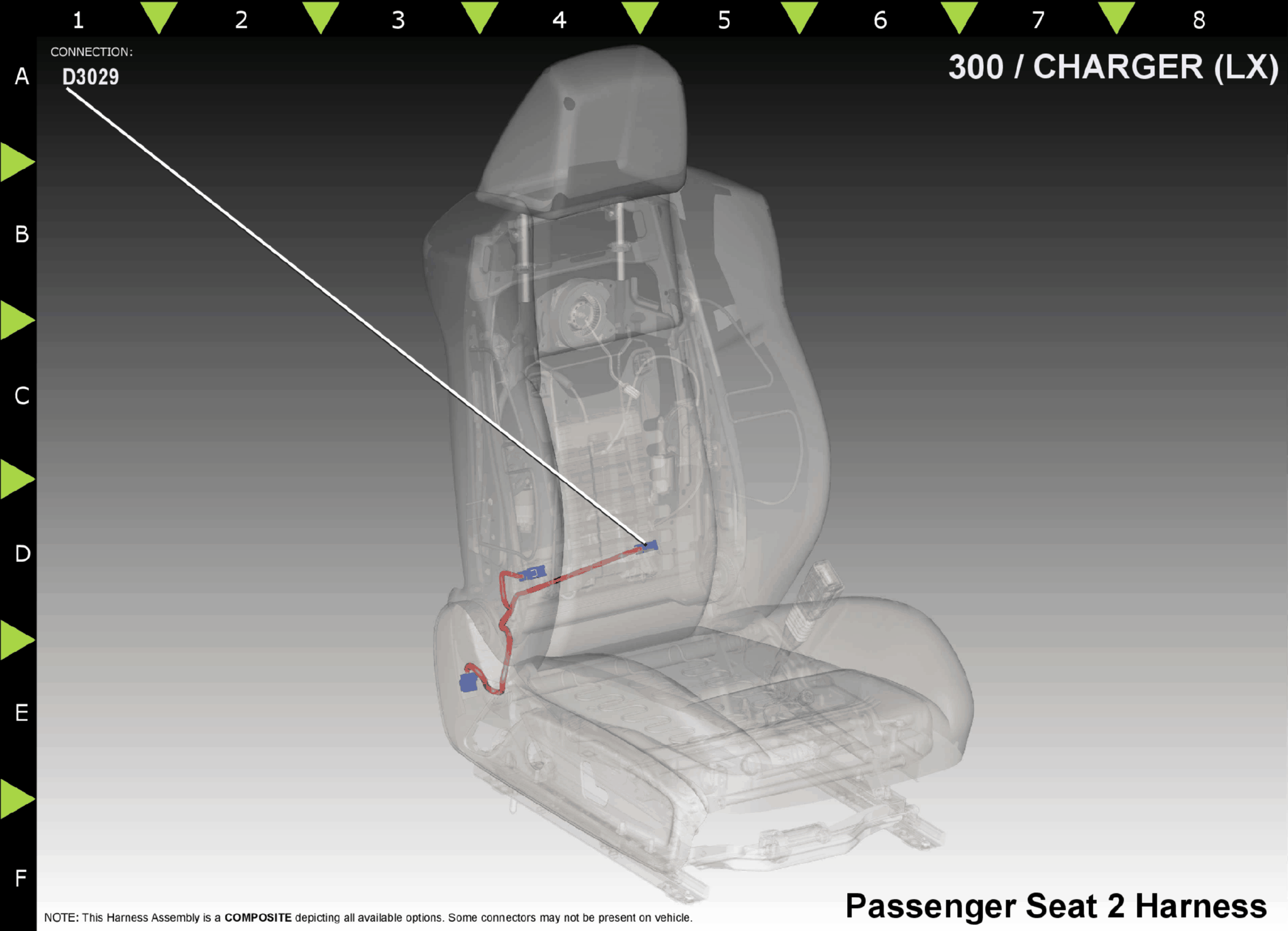

Fig 2: Motor-Seat Adjuster-Passenger Recliner Component Location
GCWD1021983Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 P44 LG 18 PASSENGER RECLINER UP SWITCH SENSE N/A
2 P42 LG 18 PASSENGER RECLINER DOWN SWITCH SENSE N/A
