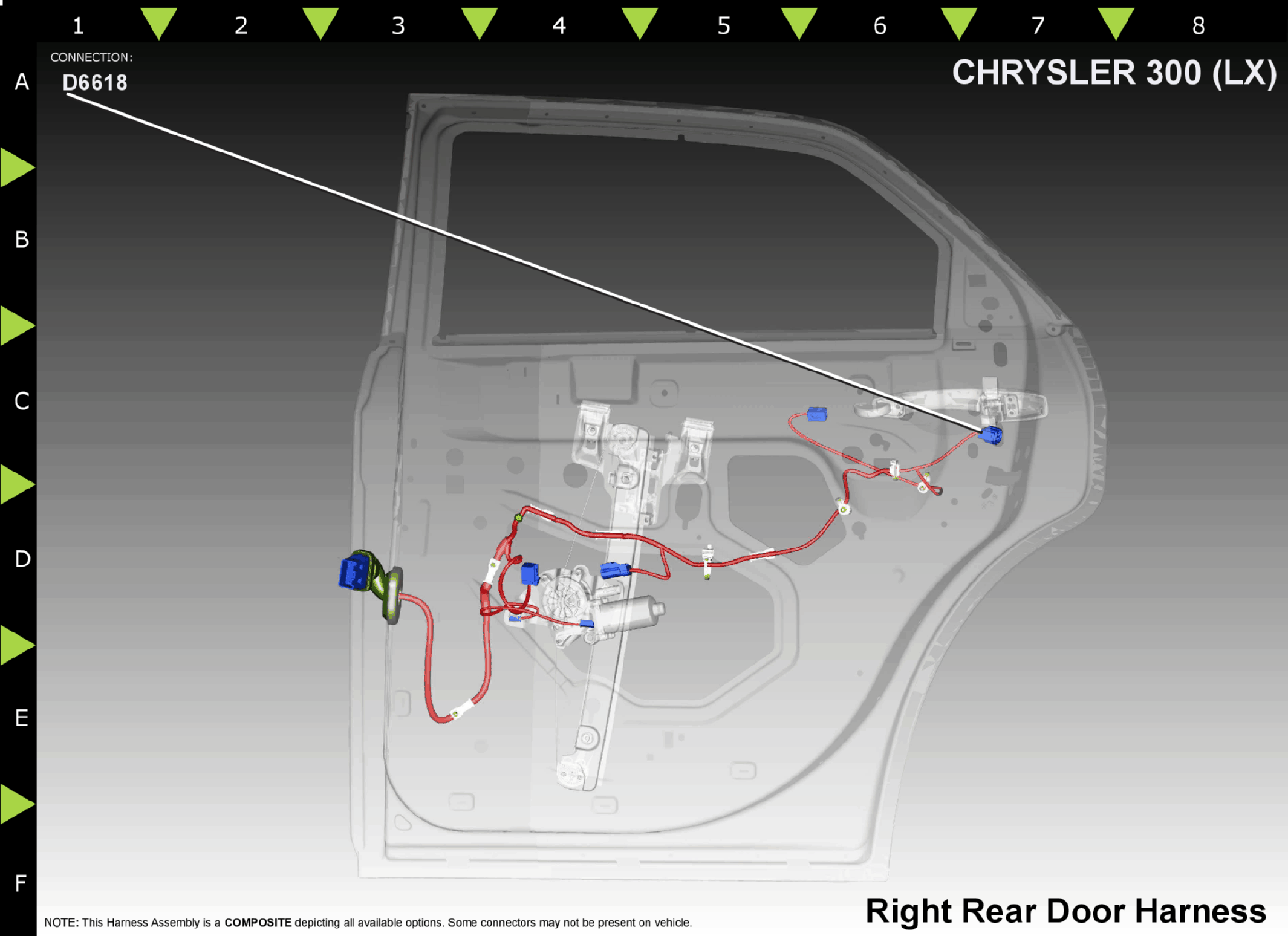

Latch-Door-Right Rear (D6618)
Harness-Family: Door_Right_Rear
Color: BLACK
Gender: FEMALE
Part Number: 7283-7040-30
Part Description: 090 II 4POLE SEALED INSL
Connector No: D6618
Option: Standard
Repair Kit Part Number: 05161916AA
Cavity Count: 4
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | G76 | VT | 22 | RIGHT REAR DOOR AJAR SWITCH SENSE | N/A |
| 2 | Z911 | BK | 22 | GROUND | N/A |
| 3 | P303 | TN | 22 | PASSENGER DOOR UNLOCK DRIVER | N/A |
| 4 | P392 | LG | 22 | DOOR LOCK DRIVER RIGHT DOORS | N/A |
