Heater-Seat Cushion-Right (D6738)

Harness-Family: Seat_Pass

Color: GREEN

Gender: MALE

Part Number: 7282-6444-60

Part Description: KAIZEN YESC SUB ASSEMBLY

Connector No: D6738

Option: Standard

Repair Kit Part Number: 68087932AA

Cavity Count: 2

Fig 1: Heater-Seat Cushion-Right Connector End View
GCWD1006498Courtesy of CHRYSLER

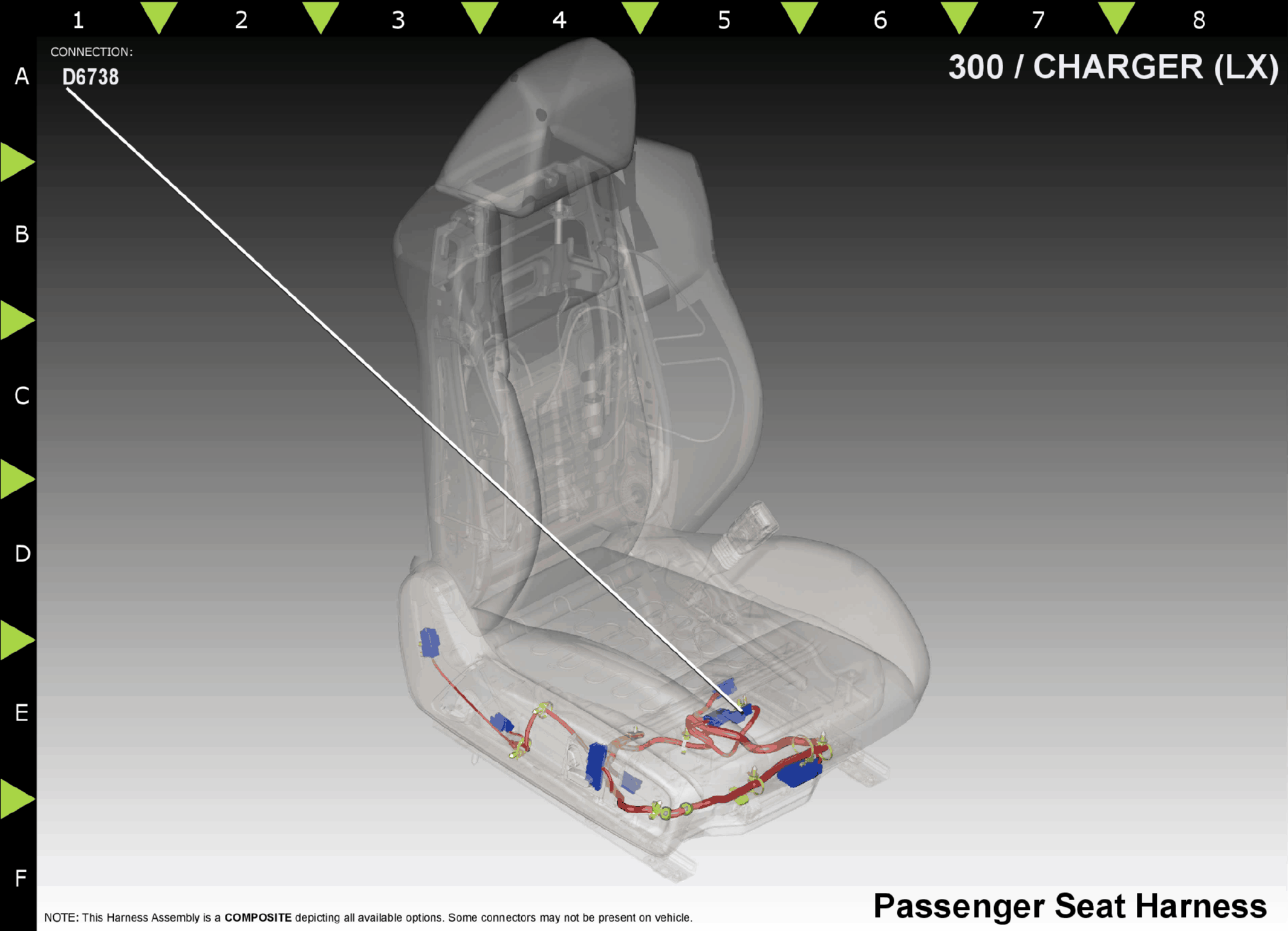

Fig 2: Heater-Seat Cushion-Right Component Location
GCWD1019832Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 P188 LG 20 RIGHT FRONT SEAT HEATER CONTROL N/A
2 Z911 BK 20 GROUND LHD
2 Z912 BK 20 GROUND RHD
