Coil-Ignition 3 (D5206)

Harness-Family: Engine

Color: BLACK

Gender: FEMALE

Part Number: 184311-1

Part Description: SEALED SENSOR CONNECTOR

Connector No: D5206

Option: 5.7L/6.1L

Repair Kit Part Number: 05019952AA

Cavity Count: 3

Fig 1: Coil-Ignition 3 Connector End View

GCWD1006558

Courtesy of CHRYSLER

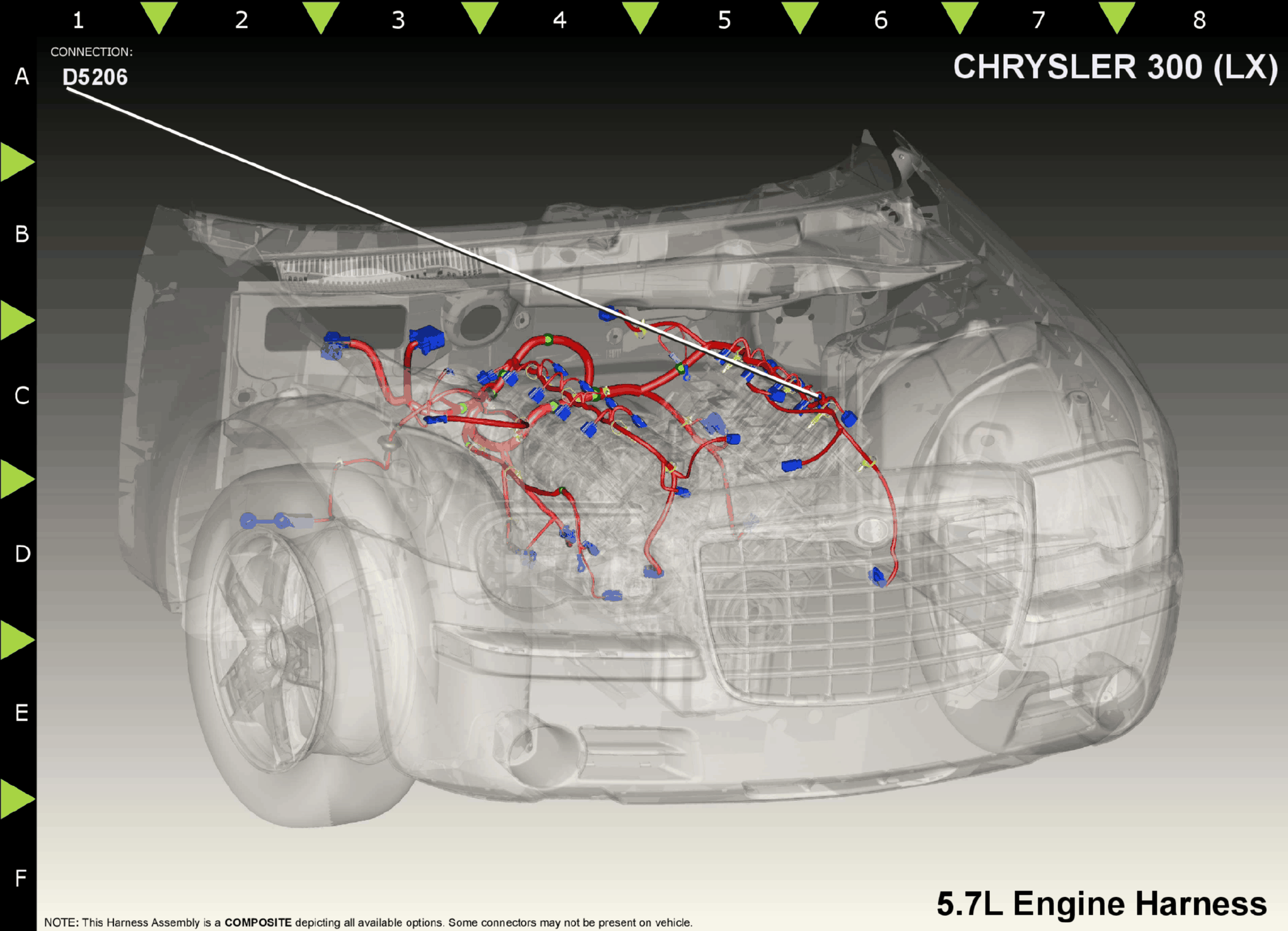

Fig 2: Coil-Ignition 3 Component Location

GCWD1018574

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K18	DB	16	COIL CONTROL 3	N/A
2	K18	DB	18	COIL CONTROL 3	N/A
2	F343	BR	16	FUSED ASD RELAY OUTPUT	N/A
3	F343	BR	18	FUSED ASD RELAY OUTPUT	N/A
