Airbag-Passenger Squib (D6665)

Harness-Family: IP

Color: YELLOW

Gender: FEMALE

Part Number: 04707139

Part Description: Not Available

Connector No: D6665

Option: Standard

Repair Kit Part Number: 68087928AA

Cavity Count: 4

Fig 1: Airbag-Passenger Squib Connector End View
GCWD1025392Courtesy of CHRYSLER

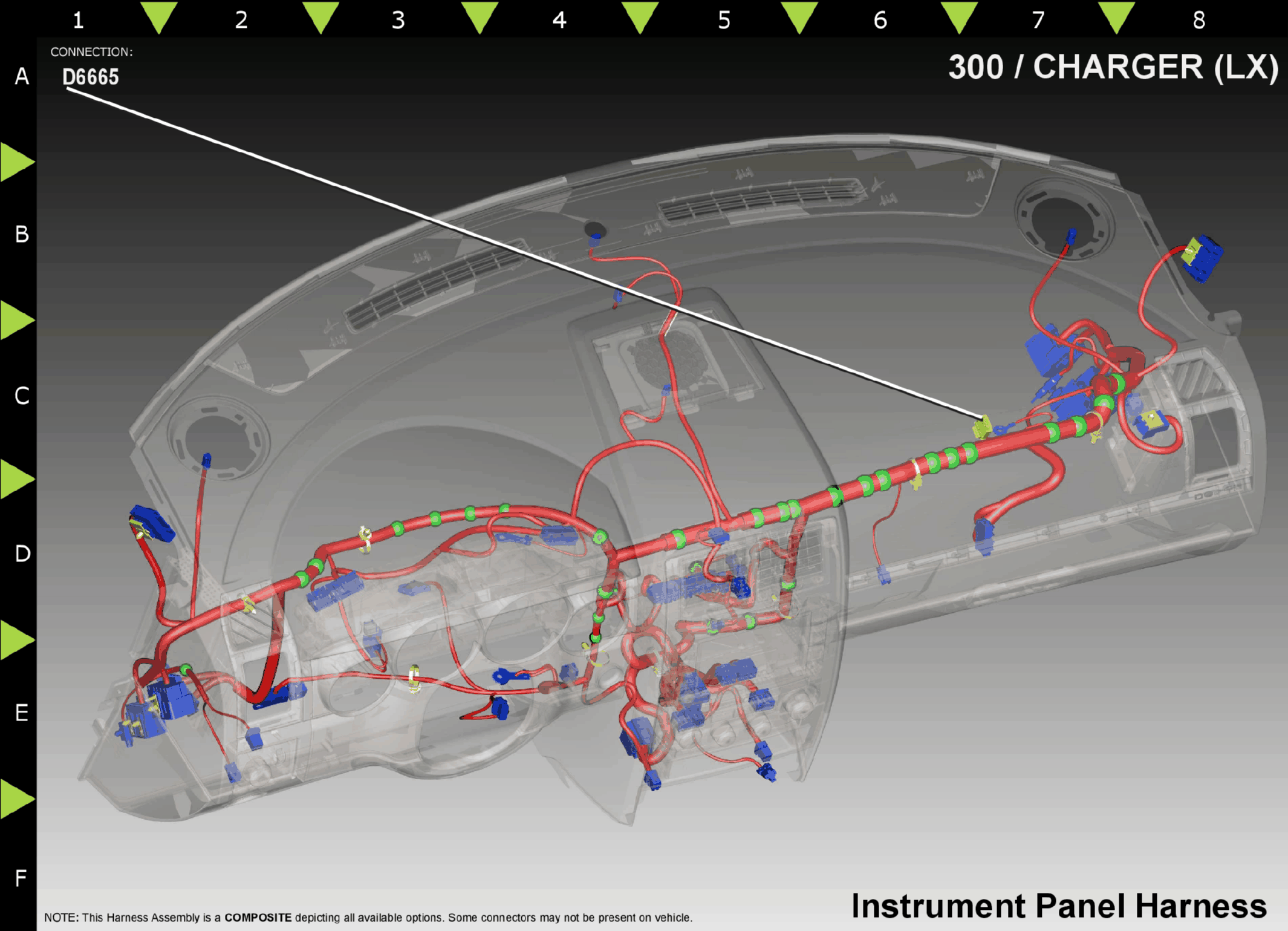

Fig 2: Airbag-Passenger Squib Component Location
GCWD1022172Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 R44 LB 20 PASSENGER SQUIB 1 LINE 1 N/A
2 R42 LB 20 PASSENGER SQUIB 1 LINE 2 N/A
3 R64 LB 20 PASSENGER SQUIB 2 LINE 1 N/A
4 R62 LB 20 PASSENGER SQUIB 2 LINE 2 N/A
