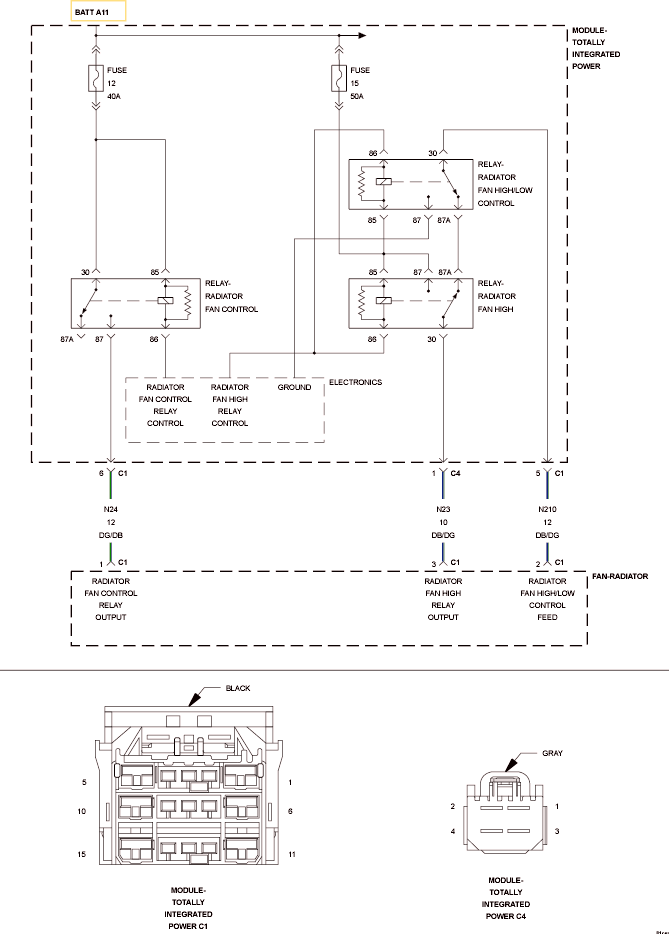

Home >> Chrysler >> 2009 >> 300 Signature Series >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Communication Devices >> DTCS B234B To P0693 (TIPM) >> P0691-Cooling Fan 1 Control Circuit Low >> Circuit Schematic
