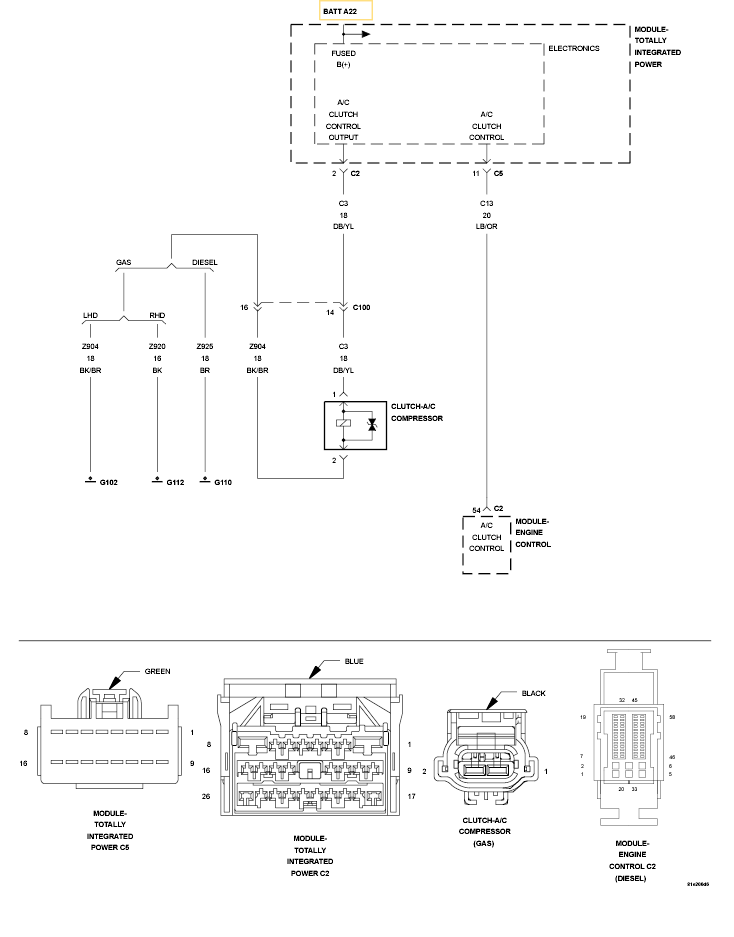

Home >> Chrysler >> 2009 >> 300 Signature Series >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Communication Devices >> DTCS B234B To P0693 (TIPM) >> P0646-A/C Clutch Control Circuit Low - Diesel >> Circuit Schematic
