Left Door Locks Inoperative - (LHD Only): Notes

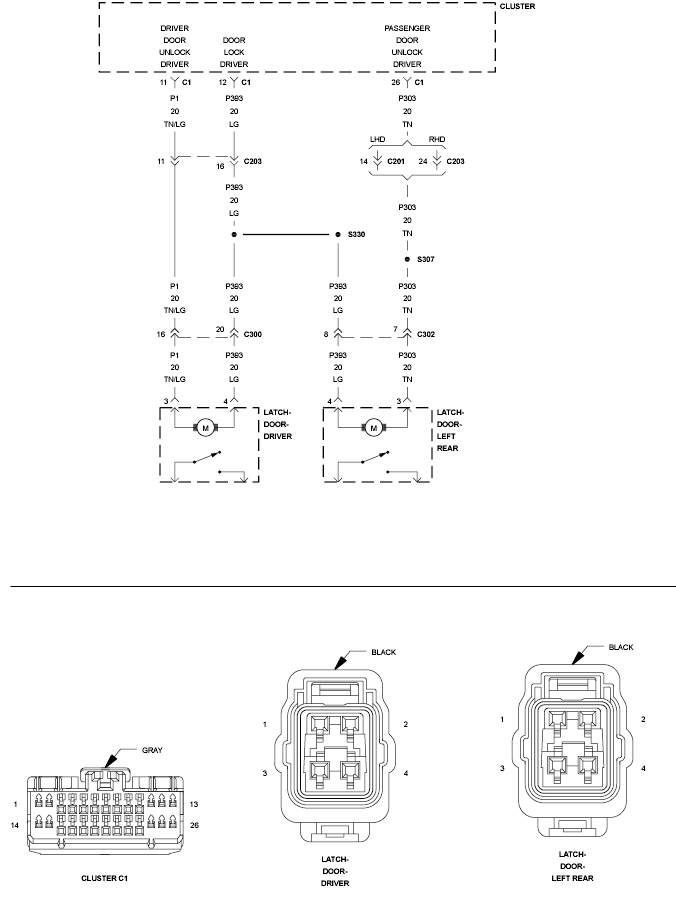

Fig 1: Left Door Locks Inoperative (LHD Only) - Circuit Schematic

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to:

• SYSTEM WIRING DIAGRAMS for 300.
• SYSTEM WIRING DIAGRAMS for Charger.
