Diagnostic Test

DRIVER DOOR LATCH INOPERATIVE

Fig 1: Connecting Test Light Between Door Lock Driver Circuit & Driver Door Unlock Driver Circuit
Courtesy of CHRYSLER LLC
1. Disconnect the Driver Door Latch connector.
2. Connect a test light between the (P393) Door Lock Driver circuit and the (P1) Driver Door Unlock Driver circuit.
3. Close the front doors or trip the door latches to the closed position.
4. Operate the door locks in both positions and observe the test light.
  Does the test light illuminate brightly for approximately 300 ms. when the door locks are actuated?

  Yes
  - Replace the Driver Door Latch.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
  No
  - Go to Step 2.
CHECK (P1) DRIVER DOOR UNLOCK DRIVER CIRCUIT FOR AN OPEN

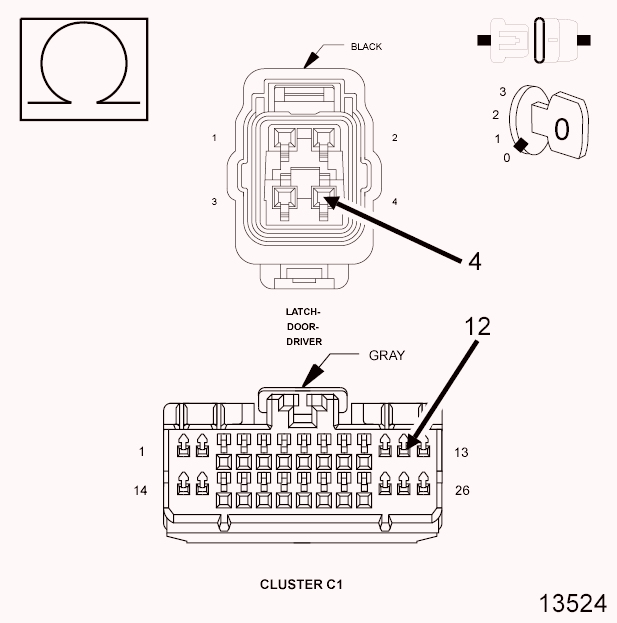

Fig 2: Measuring Resistance Of Driver Door Unlock Driver Circuit Between Latch Connector & Cluster C1 Connector
Courtesy of CHRYSLER LLC
1. Disconnect the Cluster C1 connector.
2. Measure the resistance of the (P1) Driver Door Unlock Driver circuit between the Latch connector and the Cluster C1 connector.
  Is the resistance below 2.0 ohms?

  No
  - Repair the (P1) Driver Door Unlock Driver circuit for an open.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
  Yes
  - Go to Step 3.
CHECK (P1) DRIVER DOOR UNLOCK DRIVER CIRCUIT FOR A SHORT TO GROUND

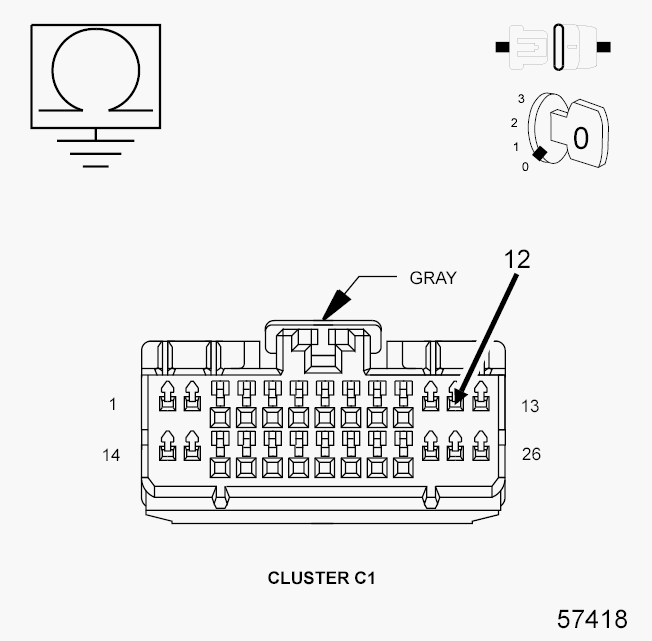

Fig 3: Measure Resistance Between Ground & Driver Door Unlock Driver Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance between Ground and the (P1) Driver Door Unlock Driver circuit.
  Is the resistance below 1,000 ohms?

  Yes
  - Repair the (P1) Driver Door Unlock Driver circuit for a short to ground.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
  No
  - Go to Step 4.
CHECK (P393) DOOR LOCK DRIVER CIRCUIT FOR AN OPEN

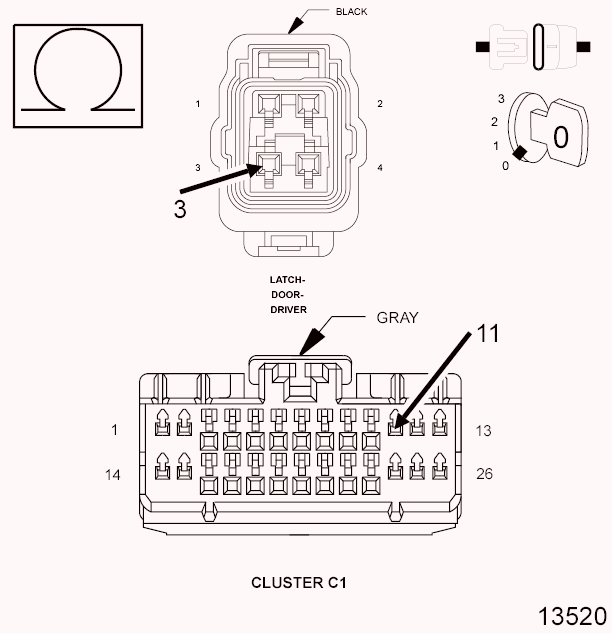

Fig 4: Measuring Resistance Of Door Lock Driver Circuit Between Cluster C1 Connector & Driver Door Latch Connector
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (P393) Door Lock Driver circuit between the Cluster C1 connector and the Driver Door Latch connector.
  Is the resistance below 2.0 ohms?

  Yes
  - Go to Step 5.
  No
  - Repair the (P393) Door Lock Driver circuit for an open.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
CHECK (P393) DOOR LOCK DRIVER CIRCUIT FOR A SHORT TO GROUND

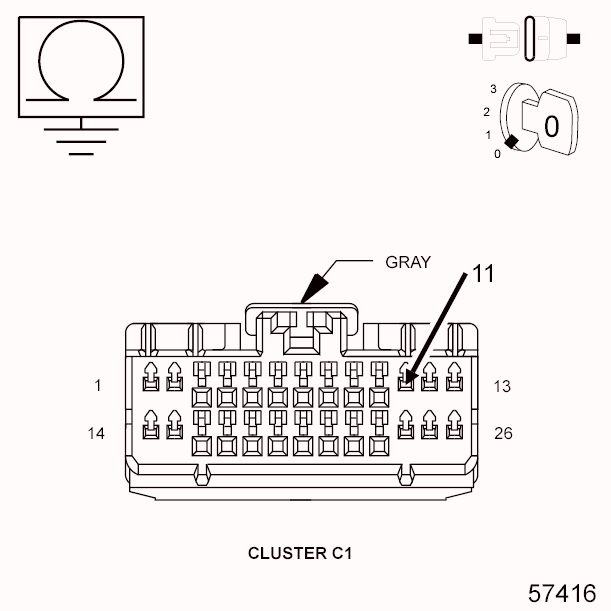

Fig 5: Measuring Resistance Between Ground & Door Lock Driver Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance between Ground and the (P393) Door Lock Driver circuit.
  Is the resistance below 1,000 ohms?

  Yes
  - Repair the (P393) Door Lock Driver circuit for a short to ground.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
  No
  - Replace the Instrument Cluster in accordance with Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
